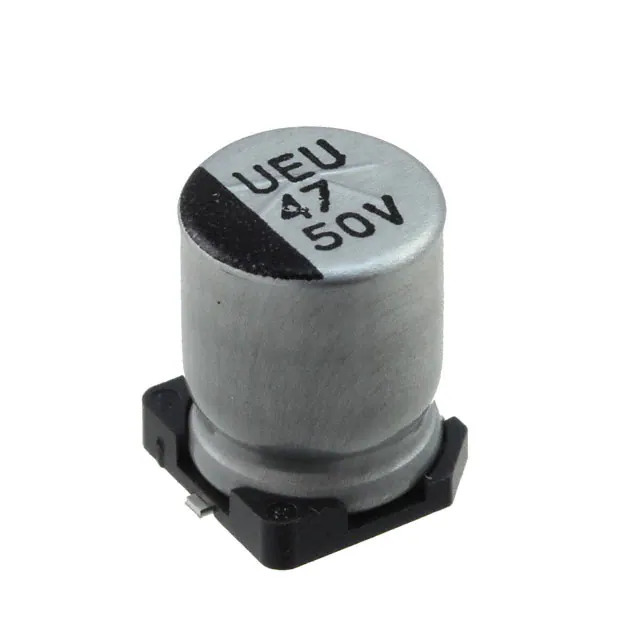

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 240 mA @ 120 Hz
Ripple Current @ High Frequency 360 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357162-50SEV47M8X10.5
Ultra Librarian 3D Model Ultra Librarian 50SEV47M8X10.5 CAD Model

Description

The Rubycon SEV series aluminum electrolytic capacitor is a high-quality component designed for automotive applications.

  • Series: SEV
  • Application: Automotive
  • Capacitance: 47 μF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • ESR: Low
  • Lifetime: 2,000 hours @ 85°C
  • Package: Radial, Can - SMD
  • Diameter: 8.00mm
  • Height: 10.50mm
  • Mounting Type: Surface Mount
  • Land Size: 8.30mm x 8.30mm
  • Manufacturer: Rubycon
  • Status: Active
  • REACH: Unaffected
