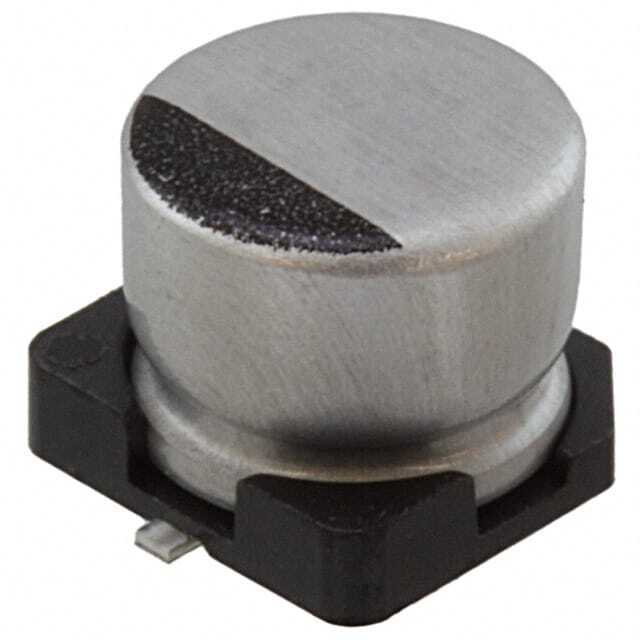

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 48 mA @ 120 Hz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360363-50SEV22M6.3X5.5
Ultra Librarian 3D Model Ultra Librarian 50SEV22M6.3X5.5 CAD Model

Description

The Rubycon 1360363-50SEV22M6.3X5.5 is an aluminum electrolytic capacitor with a capacitance of 22 µF and a voltage rating of 50 V.

  • Capacitance: 22 µF
  • Voltage Rating: 50 V
  • Series: SEV
  • Application: Automotive
  • Temperature Range: -40°C to 85°C
  • Size: 0.248" diameter
  • Height: 0.217"
  • Mounting Type: Surface Mount
  • Package: Radial, Can - SMD
  • Lifetime: 2000 hours @ 85°C
  • Ripple Current: 48 mA @ 120 Hz
  • Standard: AEC-Q200
  • Packaging: Tape & Reel
