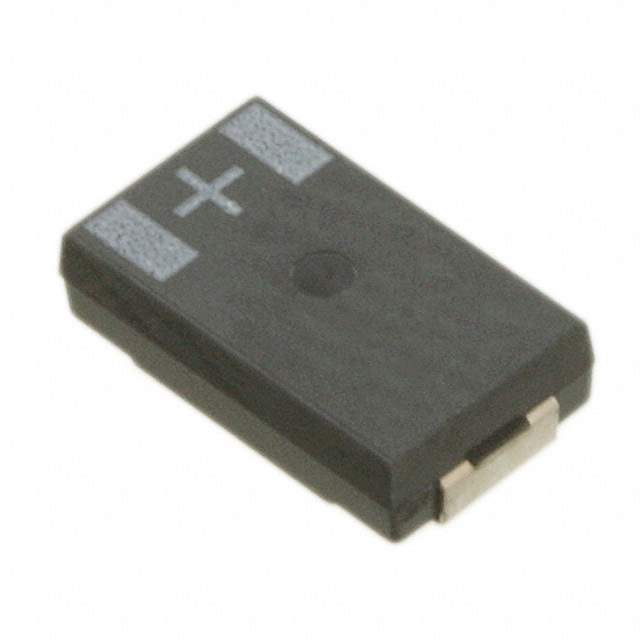

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Rubycon
Series PC-CON, SXE
Package Tape & Reel
Product Status Obsolete
Type Polymer
Capacitance 120 µF
Tolerance ±20%
Voltage - Rated 4 V
ESR (Equivalent Series Resistance) 9mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 3 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.075" (1.90mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-1645-2,1189-1645-1,1189-1645-6
Standard Package 3,500
Win Source Part Number 1218336-4SXE120M
Ultra Librarian 3D Model Ultra Librarian 4SXE120M CAD Model

Description

The Rubycon 1218336-4SXE120M is an Aluminum Polymer Capacitor from the PC-CON SXE series designed for general-purpose applications.

  • Capacitance: 120 µF
  • Voltage Rating: 4 V
  • Tolerance: ±20%
  • ESR: 9mOhm
  • Lifetime: 2000 hours @ 105°C
  • Mounting: surface mountable
  • Package: tape and reel
  • Standard Package: 3,500
  • Dimensions: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Operating Temperature: -55°C to 105°C
