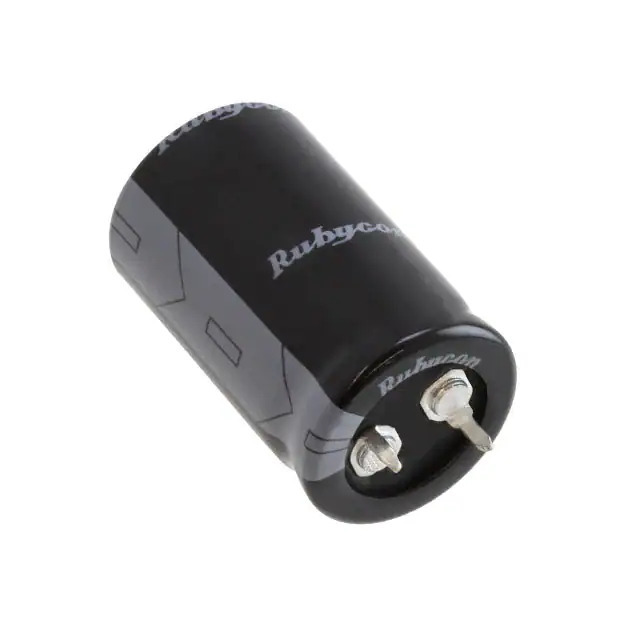

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXK
Package Bulk
Product Status Active
Capacitance 820 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 2.77 A @ 120 Hz
Ripple Current @ High Frequency 3.878 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 2.441" (62.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360769-450MXK820MEFCSN30X60
Ultra Librarian 3D Model Ultra Librarian 450MXK820MEFCSN30X60 CAD Model

Description

The MXK series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications and manufactured by Rubycon.

  • Capacitance: 820µF
  • Voltage - Rated: 450V
  • Package / Case: Radial, Can - Snap-In
  • Mounting Type: Through Hole
  • Operating Temperature: -25°C ~ 105°C
  • Lifetime @ Temp.: 3000 Hrs @ 105°C
  • Tolerance: ±20%
