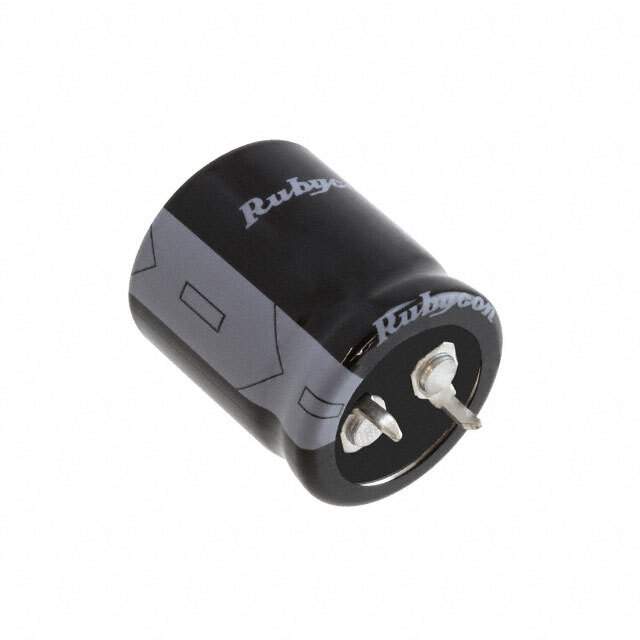

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 890 mA @ 120 Hz
Ripple Current @ High Frequency 1.246 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Through Hole
Case / Package Radial, Can - Snap-In
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Other Part Number 450MXG100MEFCSN25X25-ND,450MXG100MEFC25X25,1189-2734,450MXG100MEFC25X25-ND
Standard Package 200
Win Source Part Number 1330520-450MXG100MEFCSN25X25
Ultra Librarian 3D Model Ultra Librarian 450MXG100MEFCSN25X25 CAD Model

Description

The Rubycon 1330520-450MXG100MEFCSN25X25 is an aluminum electrolytic capacitor manufactured by Rubycon.

  • Capacitance: 100 µF
  • Voltage Rating: 450 V
  • Tolerance: ±20%
  • Ripple Current: 890 mA @ 120 Hz and 1.246 A @ 10 kHz
  • Applications: Power supplies, lighting systems, and motor drives
