Same model may have multiple batches, images only for reference.

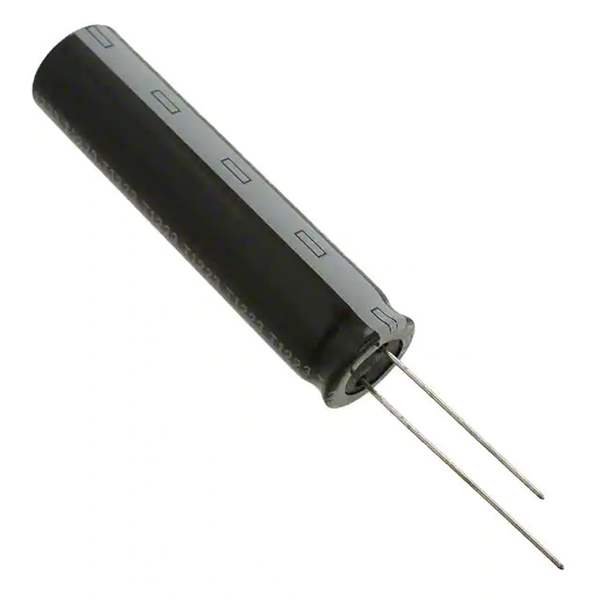

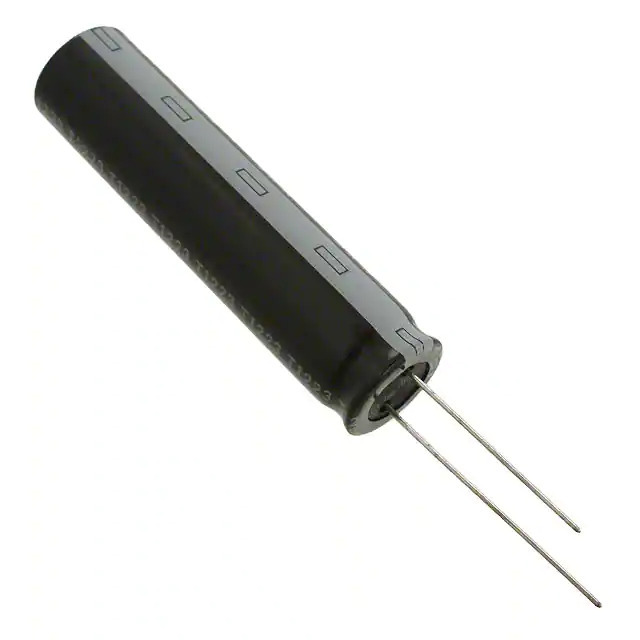

450BXW68MEFR12.5X45

Name: 450BXW68MEFR12.5X45
Brand: Rubycon
SKU: 1358249
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	450BXW68MEFR12.5X45
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Description	CAP ALUM 68UF 20% 450V RADIAL / 68 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Rubycon
Series	BXW
Package	Bulk
Product Status	Active
Capacitance	68 µF
Tolerance	±20%
Voltage - Rated	450 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	610 mA @ 120 Hz
Ripple Current @ High Frequency	1.525 A @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.850" (47.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358249-450BXW68MEFR12.5X45
Ultra Librarian 3D Model	Ultra Librarian 450BXW68MEFR12.5X45 CAD Model

Description

The BXW series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications from Rubycon.

Capacitance: 68 μF
Voltage Rating: 450 V
Tolerance: ±20%
Temperature Range: -40°C to 105°C
Package: Radial, Can
Lifetime: 12,000 hours @ 105°C
Ripple Current (Low Frequency): 610 mA @ 120 Hz
Ripple Current (High Frequency): 1.525 A @ 100 kHz
Polarization: Polarized
Lead Spacing: 5.00mm
