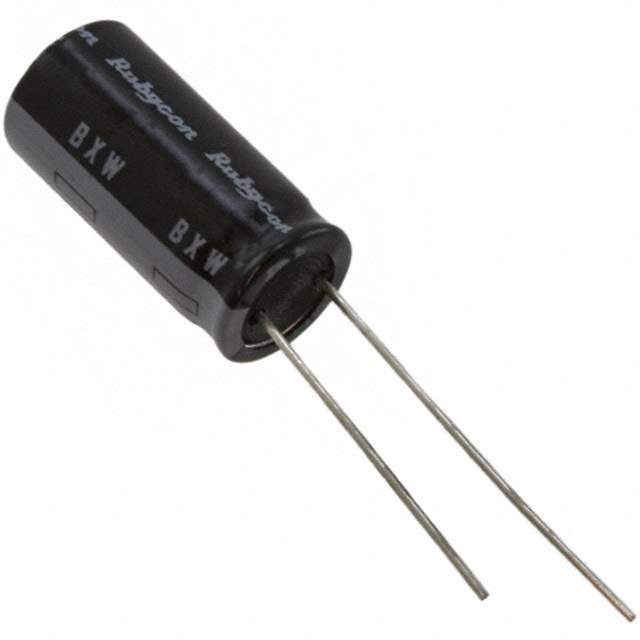

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXW
Package Bulk
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 130 mA @ 120 Hz
Ripple Current @ High Frequency 325 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.709" (18.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-3176
Standard Package 1,000
Win Source Part Number 961945-450BXW10MEFR10X16
Ultra Librarian 3D Model Ultra Librarian 450BXW10MEFR10X16 CAD Model

Description

The Rubycon BXW series aluminum electrolytic capacitor is a through-hole mounting type capacitor with a capacitance of 10 µF and a voltage rating of 450 V.

  • Mounting Type: Through-hole
  • Capacitance: 10 µF
  • Voltage Rating: 450 V
  • Tolerance: ±20%
  • Package/Case: Radial, can
  • Application: General Purpose
  • Height When Seated: 0.709" (18.00mm)
  • Lifetime: 10000 Hrs @ 105°C
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • REACH: Unaffected
  • ECCN: EAR99
