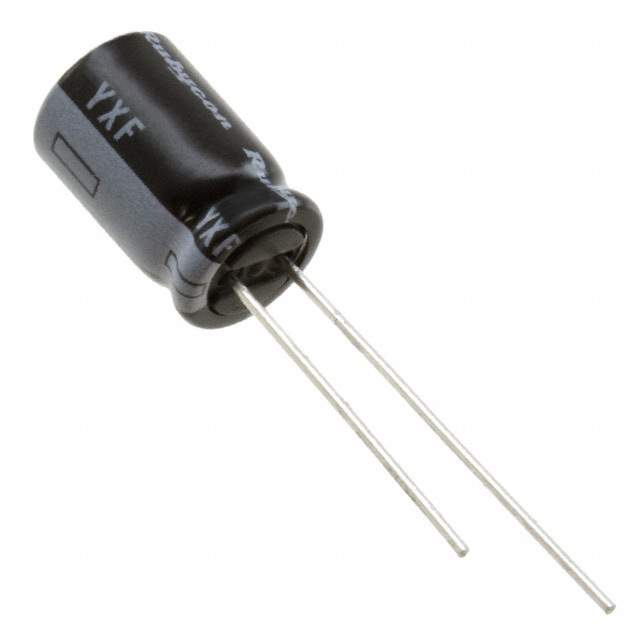

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 100μF
Tolerance ±20%
Voltage - Rated 35V
Lifetime at Temp. 7000 Hrs at 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current at Low Frequency 280mA at 120Hz
Ripple Current at High Frequency 400mA at 100kHz
Impedance 250 mOhms
Lead Spacing 0.138" (3.50mm)
Parts Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.512" (13.00mm)
Mounting Style Through Hole
Manufacturer Package Radial, Can
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 759249-35YXF100MEFC8X11.5
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 35YXF100MEFC8X11.5 CAD Model

Description

The Rubycon radial, can capacitor is a through-hole component with a capacitance of 100μF and a voltage rating of 35V.

  • Tolerance: ±20%.
  • Impedance: 250 mOhms.
  • Operating temperature range: -40°C to 105°C.
  • Height when seated: 0.512" (13.00mm).
  • Parts dimension: 0.315" Dia (8.00mm).
  • Ripple current @ low frequency: 280mA @ 120Hz.
  • Ripple current @ high frequency: 400mA @ 100kHz.
  • Manufacturer pack quantity: 2,000.
  • Lifetime @ temp.: 7000 Hrs @ 105°C.
