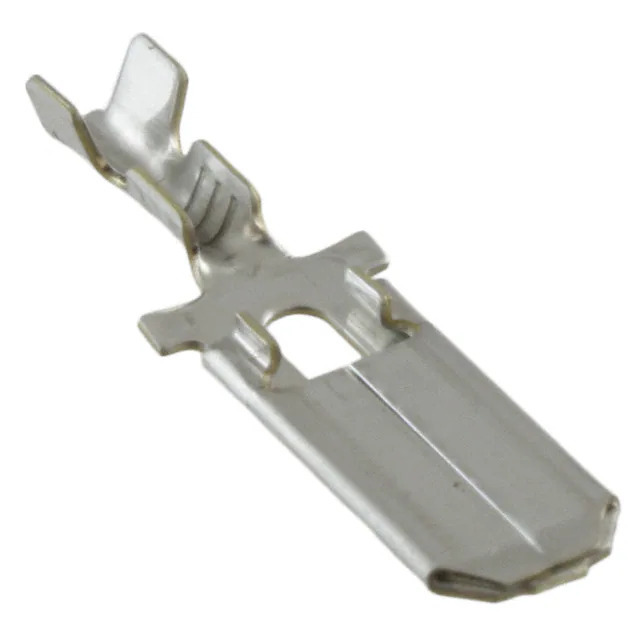

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series 250
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.543" (13.80mm)
Length - Overall 0.957" (24.30mm)
Termination Crimp
Wire Gauge 20-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.059" ~ 0.087" (1.50mm ~ 2.21mm)
Base Product Number 170349
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364881-170349-2
Ultra Librarian 3D Model Ultra Librarian 170349-2 CAD Model

Description

The TE Connectivity AMP Connectors 250 series Quick Disconnect Connector is a reliable and efficient solution for connecting wires in electronic circuits.

  • Mounting Type: Free Hanging (In-Line)
  • Contact Material: Brass
  • Terminal Type: Standard
  • Wire Gauge: 20-22 AWG
  • Contact Finish: Tin
  • Overall Length: 0.957" (24.30mm)
  • Tab Width: 0.250" (6.35mm)
  • Insulation Diameter: 0.059" ~ 0.087" (1.50mm ~ 2.21mm)
  • Insulation: Non-Insulated
