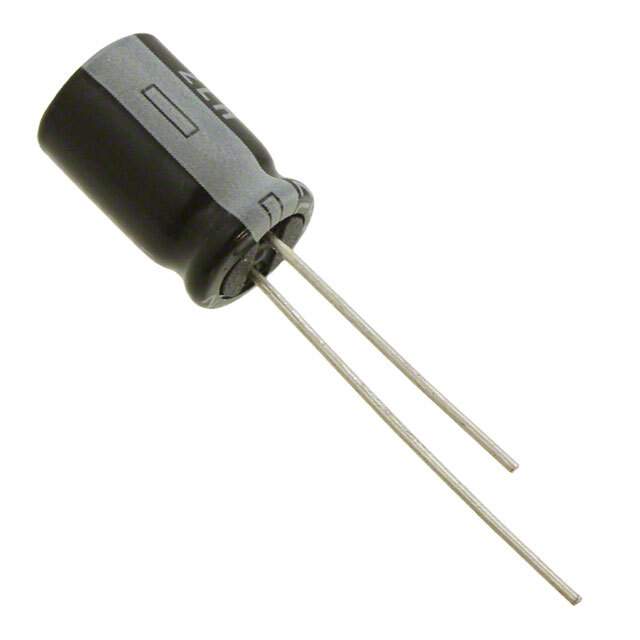

25ZLH330MEFC8X11.5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 519.75 mA @ 120 Hz
Ripple Current @ High Frequency 945 mA @ 100 kHz
Impedance 56 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-1875,25ZLH330MEFC8X115,25ZLH330MEFC8X11.5-ND
Standard Package 2,000
Win Source Part Number 1330171-25ZLH330MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 25ZLH330MEFC8X11.5 CAD Model

Description

The Rubycon 1330171-25ZLH330MEFC8X11.5 capacitor is an aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 330 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Lead Spacing: 0.138" (3.50mm)
  • ESR: Not Specified
  • Polarization: Polarized
  • Case/Package: Radial, Can
  • Height: 0.512" (13.00mm) Max
  • Diameter: 0.315" (8.00mm)
  • Temperature Range: -40°C ~ 105°C
  • Lifetime: 8000 Hrs @ 105°C
  • Ripple Current: 519.75 mA @ 120 Hz and 945 mA @ 100 kHz
