Same model may have multiple batches, images only for reference.

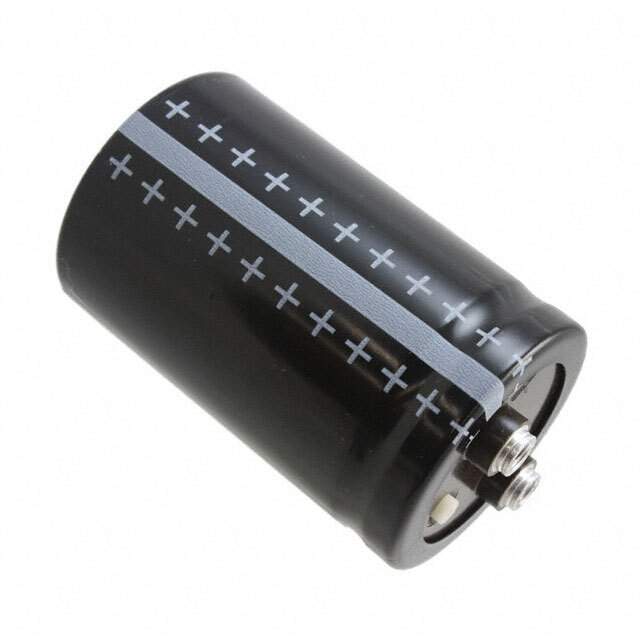

B43564B9228M000 Real Image
Same model may have multiple batches, images only for reference.

B43564B9228M000

Part No B43564B9228M000
Manufacturer EPCOS (TDK)
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 400V SCREW / 2200 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 72mOhm @ 100Hz 15000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr EPCOS - TDK Electronics
Series B43564
Package Bulk
Product Status Obsolete
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) 72mOhm @ 100Hz
Lifetime @ Temp. 15000 Hrs @ 85°C
Temperature Range - Operating -25°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 7.9 A @ 100 Hz
Impedance 58 mOhms
Lead Spacing 1.122" (28.50mm)
Dimension 2.532" Dia (64.30mm)
Height - Seated (Max) 3.177" (80.70mm)
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.22.0085
Other Names 495-3510,B43564B9228M
Standard Package 30
Win Source Part Number 1110540-B43564B9228M000
Ultra Librarian 3D Model Ultra Librarian B43564B9228M000 CAD Model

Description

The EPCOS - TDK Electronics B43564B9228M000 is a radial, can - screw terminals aluminum electrolytic capacitor.

  • Capacitor Type: Aluminum Electrolytic Capacitor
  • Terminal Style: Radial, Can - Screw Terminals
  • Capacitance: 2200 µF
  • Tolerance: ±20%
  • Voltage Rating: 400 V
  • Ripple Current: 7.9 A @ 100 Hz
  • ESR: 72mOhm @ 100Hz
  • Series: B43564
  • Application: General Purpose
  • Height: 3.177" (80.70mm) when seated
  • Polarization: Polarized
  • Lead Spacing: 1.122" (28.50mm)
  • Surface Mount Land Size: -
  • Temperature Range: -25°C to 85°C
  • Lifetime: 15000 Hrs @ 85°C
