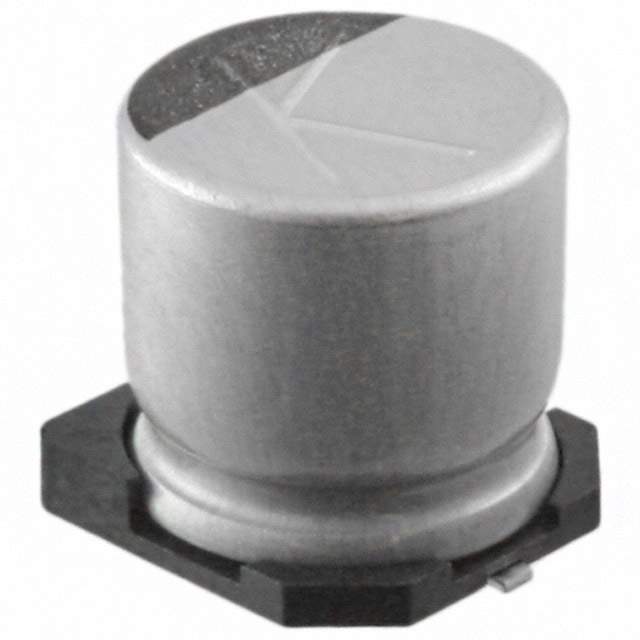

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 510 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Impedance 90 mOhms
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 1189-1588-6,25TZV470M10X105,1189-1588-2,1189-1588-1
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307293-25TZV470M10X10.5
Ultra Librarian 3D Model Ultra Librarian 25TZV470M10X10.5 CAD Model

Description

The Rubycon TZV series 25TZV470M10X10.5 is an aluminum electrolytic capacitor that is designed for automotive applications.

  • Capacitance: 470 microfarads
  • Voltage Rating: 25V
  • Win Source Part Number: 1307293-25TZV470M10X10.5
  • Tolerance: ±20%
  • Surface Mount Land Size: 0.406 inches L x 0.406 inches W (10.30mm x 10.30mm)
  • Ripple Current: 510mA @ 120Hz
  • Ripple Current: 850mA @ 100kHz
