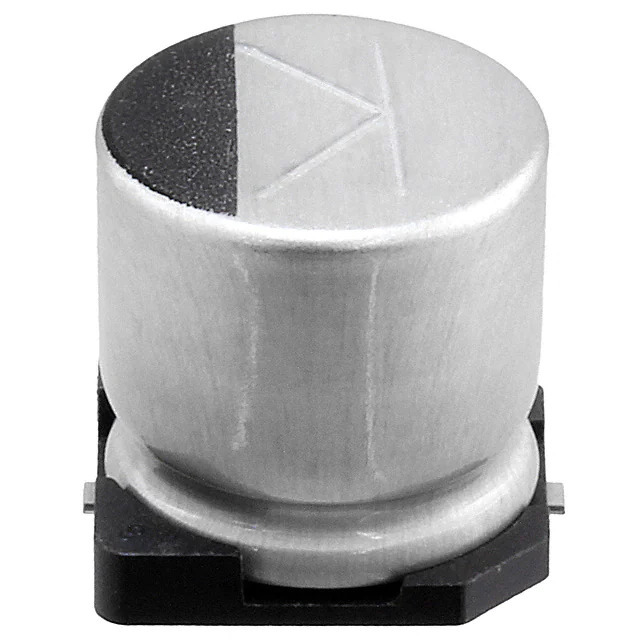

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TLV
Package Tape & Reel
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 510 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Impedance 80 mOhms
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360376-25TLV470M10X10.5
Ultra Librarian 3D Model Ultra Librarian 25TLV470M10X10.5 CAD Model

Description

The 25TLV470M10X10.5 is an aluminum electrolytic capacitor from Rubycon. 25TLV470M10X10.5 is from Rubycon.

  • Series: TLV
  • Mounting Type: Surface Mount
  • Capacitance: 470μF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Lifetime: 5000 hours @ 105°C
  • Package: Radial, Can - SMD
  • Size (Diameter): 0.394" (10.00mm)
  • Height: 0.413" (10.50mm)
