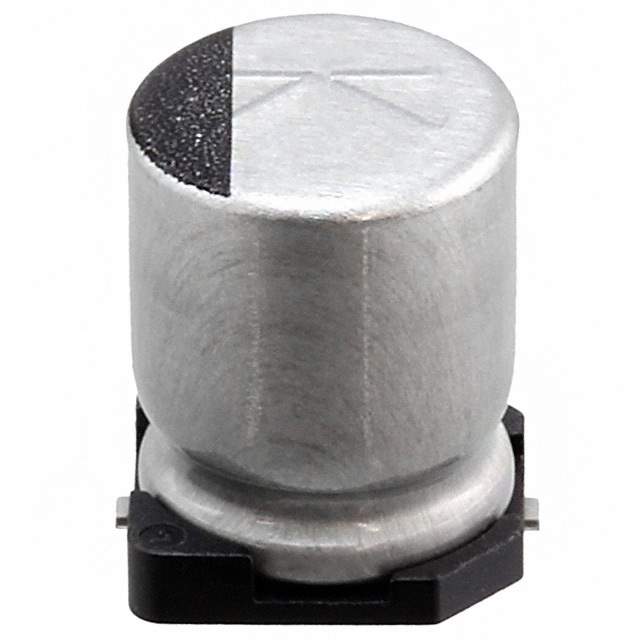

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series THV
Package Tape & Reel
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 300mOhm @ 100kHz
Lifetime @ Temp. 3000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 180 mA @ 120 Hz
Ripple Current @ High Frequency 300 mA @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337456-25THV220M8X10.5
Ultra Librarian 3D Model Ultra Librarian 25THV220M8X10.5 CAD Model

Description

The Rubycon THV series aluminum electrolytic capacitor is an automotive capacitor with a capacitance of 220 µF and a voltage rating of 25 V.

  • Capacitance: 220 µF
  • Voltage - Rated: 25 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 300mOhm @ 100kHz
  • Lifetime @ Temp.: 3000 Hrs @ 125°C
  • Polarization: Polarized
  • Ripple Current @ Low Frequency: 180 mA @ 120 Hz
  • Ripple Current @ High Frequency: 300 mA @ 100 kHz
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Size / Dimension: 0.315" (8.00mm)
  • Height - Seated (Max): 0.413" (10.50mm)
  • Applications: Automotive
  • Rating: AEC-Q200
