Same model may have multiple batches, images only for reference.

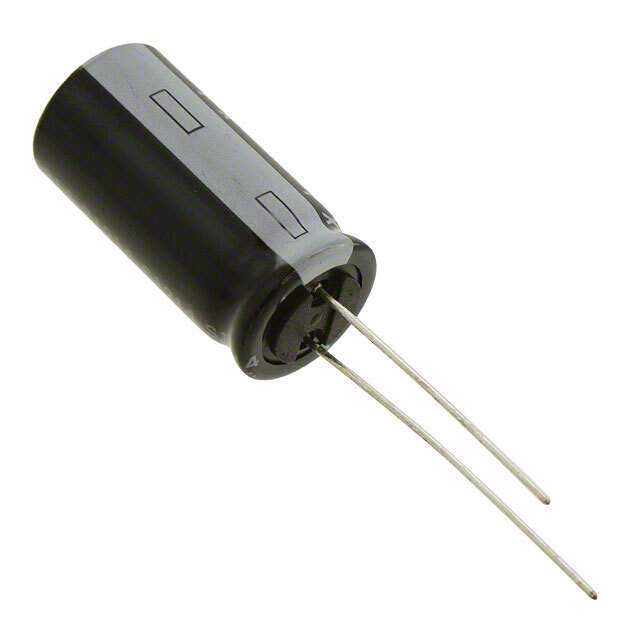

25PX2200MEFC12.5X20 Real Image
Same model may have multiple batches, images only for reference.

25PX2200MEFC12.5X20

Part No 25PX2200MEFC12.5X20
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 25V RADIAL / 2200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.09 A @ 120 Hz
Ripple Current @ High Frequency 1.2535 A @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000
Win Source Part Number 1117686-25PX2200MEFC12.5X20
Ultra Librarian 3D Model Ultra Librarian 25PX2200MEFC12.5X20 CAD Model

Description

The Rubycon 1117686-25PX2200MEFC12.5X20 is a high-quality aluminum electrolytic capacitor that is designed to provide reliable performance in a wide range of applications.

  • Manufacturer: Rubycon
  • Product Name: 1117686-25PX2200MEFC12.5X20
  • Component Type: Aluminum Electrolytic Capacitor
  • Capacitance: 2200 µF
  • Voltage Rating: 25 V
  • Series: PX series
  • Package: Radial Can
  • Lifespan: 2000 hours @ 105°C
  • Mounting Type: Through-Hole
  • Packaging: Bulk
  • Standard Package: 1000
