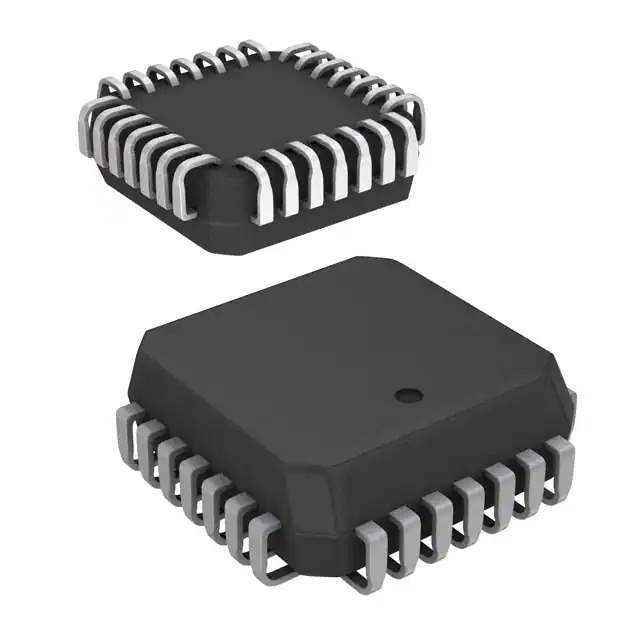

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches - Special Purpose
Mfr Vishay
Package Tube
Product Status Obsolete
Applications Ultrasound, Video
Number of Channels 2
On-State Resistance (Max) 90Ohm
Voltage - Supply, Single (V+) 10V ~ 21V
-3db Bandwidth 500MHz
Features T-Switch Configuration
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 28-LCC (J-Lead)
Supplier Device Package 28-PLCC (11.51x11.51)
Base Product Number DG538
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 584948-DG538ADN
Ultra Librarian 3D Model Ultra Librarian DG538ADN CAD Model

Description

The DG538ADN is an analog switch integrated circuit from Vishay.

  • Application: special purpose applications and is suitable for use in ultrasound and video systems
  • Configuration: T-Switch
  • Package: 400 pieces
  • Number of Channels: 2
  • On-State Resistance: 90 Ohms
  • -3db Bandwidth: 500MHz
  • Voltage Supply Range: 10V to 21V
  • Package Type: 28-LCC (J-Lead)
  • Product Status: active product
  • Operating Temperature: -40°C to 85°C
