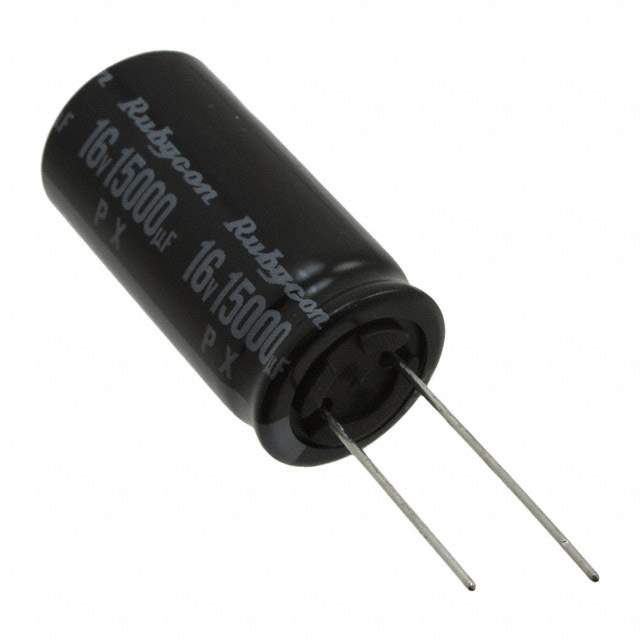

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Capacitance 10000 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.05 A @ 120 Hz
Ripple Current @ High Frequency 2.3575 A @ 10 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.457" (37.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-1223,25PX10000MEFC18X355
Standard Package 200
Win Source Part Number 1163929-25PX10000MEFC18X35.5
Ultra Librarian 3D Model Ultra Librarian 25PX10000MEFC18X35.5 CAD Model

Description

The PX series of aluminum electrolytic capacitors from Rubycon are designed for general purpose applications.

  • Application: General Purpose
  • Capacitance: 10000 µF
  • Tolerance: ±20%
  • Voltage Rating: 25 V
  • Ripple Current (Low Frequency): 2.05 A @ 120 Hz
  • Ripple Current (High Frequency): 2.3575 A @ 10 kHz
  • Height When Seated: 1.457 inches (37.00mm)
  • Lead Spacing: 0.295 inches (7.50mm)
  • Package/Case: Radial, Can
  • Diameter: 0.709 inches (18.00mm)
  • Lifetime @ Temperature: 2000 Hrs @ 105°C
  • Polarization: Polar
  • Temperature Range: -55°C ~ 105°C
  • Mounting Type: Through Hole
