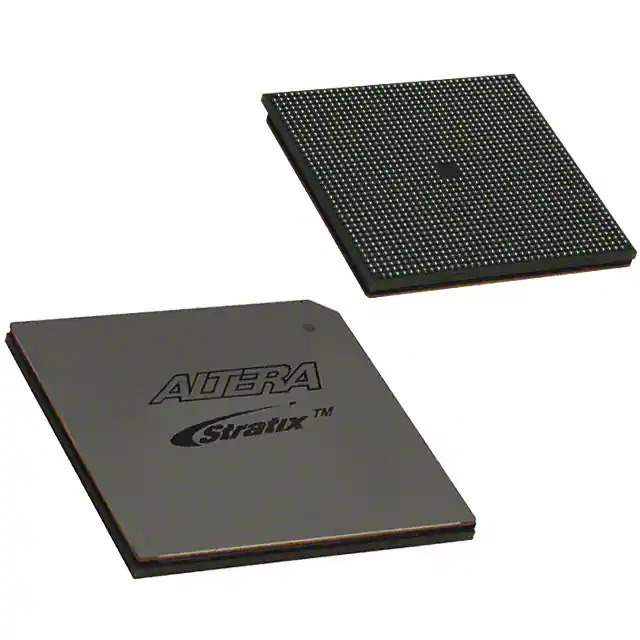

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® II
Package Tray
Product Status Obsolete
Programmable Not Verified
Number of LABs/CLBs 4548
Number of Logic Elements/Cells 90960
Total RAM Bits 4520488
Number of I/O 902
Voltage - Supply 1.15V ~ 1.25V
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 1508-BBGA, FCBGA
Supplier Device Package 1508-FBGA, FC (40x40)
Base Product Number EP2S90
Standard Package 21 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8542.39.0001
Win Source Part Number 745591-EP2S90F1508I4
Ultra Librarian 3D Model Ultra Librarian EP2S90F1508I4 CAD Model

Description

The 745591-EP2S90F1508I4 is an integrated circuit belonging to the Stratix II series of Field Programmable Gate Arrays (FPGAs). With a total of 4548 LABs/CLBs and 90960 logic elements/cells, this FPGA offers a high level of programmability and flexibility for various applications.

  • Series: Stratix II
  • LABs/CLBs: 4548
  • Logic Elements/Cells: 90960
  • Voltage Supply: 1.15V to 1.25V
  • Temperature Range: -40°C to 100°C
  • Package: 1508-BBGA, FCBGA
  • Mounting Type: Surface Mount
  • I/O: 902
  • RAM Bits: 4520488
  • Manufacturer: Intel
