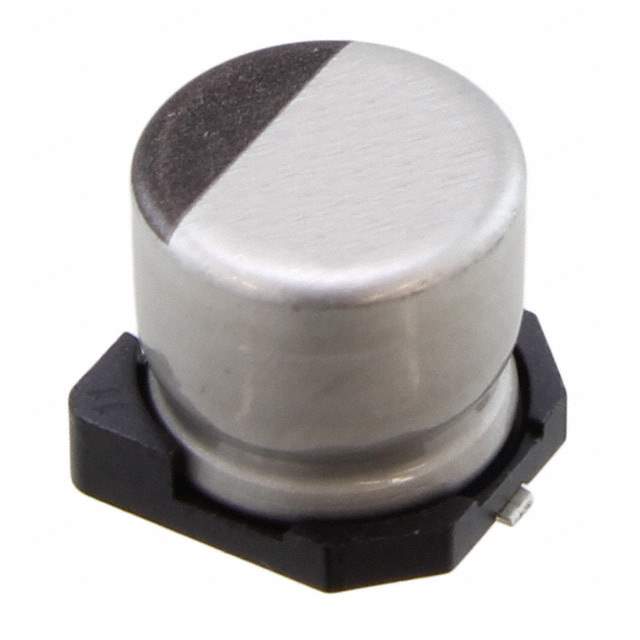

Same model may have multiple batches, images only for reference.

UCZ2A100MCS1GS

Name: UCZ2A100MCS1GS
Brand: Nichicon
SKU: 1346907
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UCZ2A100MCS1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 100V SMD / 10 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 750mOhm @ 100kHz 3000 Hrs @ 125°C
Datasheet	UCZ2A100MCS1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCZ
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	100 V
ESR (Equivalent Series Resistance)	750mOhm @ 100kHz
Lifetime @ Temp.	3000 Hrs @ 125°C
Temperature Range - Operating	-40°C ~ 125°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	35 mA @ 120 Hz
Ripple Current @ High Frequency	70 mA @ 100 kHz
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.425" (10.80mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1346907-UCZ2A100MCS1GS
Ultra Librarian 3D Model	Ultra Librarian UCZ2A100MCS1GS CAD Model

Description

The UCZ series aluminum electrolytic capacitor from Nichicon is a general-purpose capacitor designed for various applications.

Capacitance: 10 µF
Voltage Rating: 100 V
Tolerance: ±20%
ESR: 750mOhm @ 100kHz
Lifetime: 3000 hours @ 125°C
Polarization: Polarized
Surface Mount Land Size: 0.327” L x 0.327” W (8.30mm x 8.30mm)
Mounting Type: Surface Mount
Package: Radial, Can - SMD
Operating Temperature: -40°C to 125°C
