Same model may have multiple batches, images only for reference.

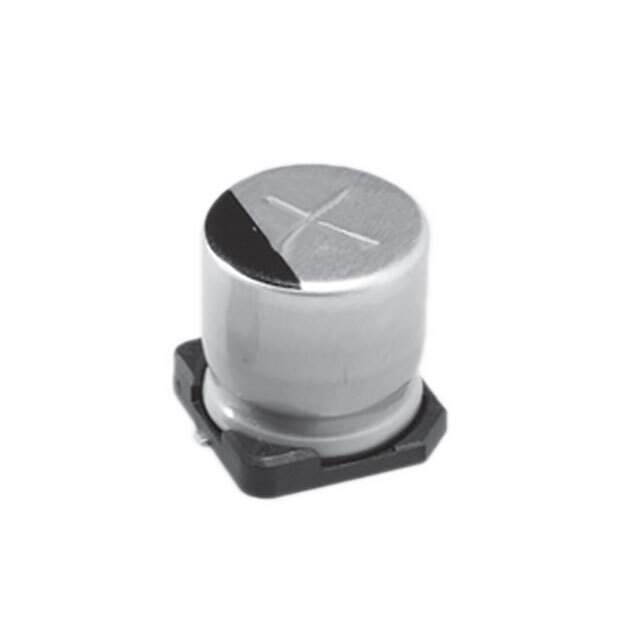

UCV1V221MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UCV1V221MCL1GS

Part No UCV1V221MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 35V SMD / 220 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UCV1V221MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCV
Package Tape & Reel
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 160 mOhms
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1345608-UCV1V221MCL1GS
Ultra Librarian 3D Model Ultra Librarian UCV1V221MCL1GS CAD Model

Description

The UCV series of aluminum electrolytic capacitors from Nichicon is a high-quality capacitor that is designed for general purpose applications. Nichicon

  • Capacitance: 220 µF
  • Tolerance: ±20%
  • Rated Voltage: 35V
  • Impedance: 160 mOhms
  • Lifetime: 2000 Hrs @ 105°C
  • Polarization: Polarized
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Temperature Range: -55°C to 105°C
