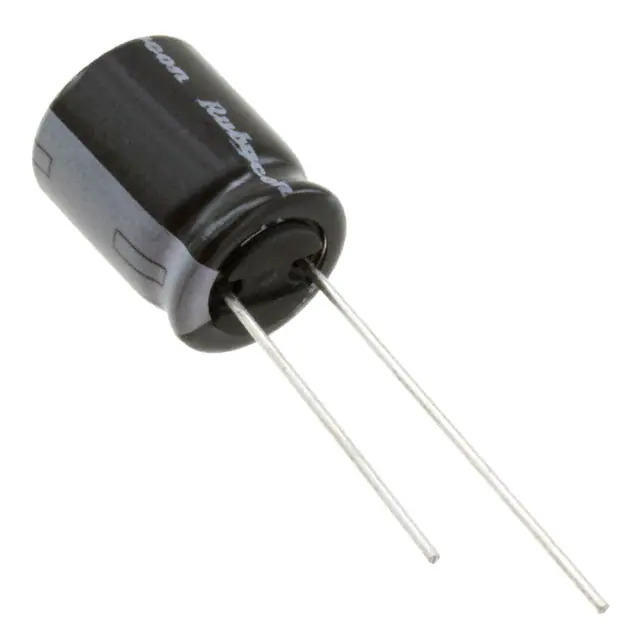

16YXF470MEFC10X12.5 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Bulk
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 435 mA @ 120 Hz
Ripple Current @ High Frequency 580 mA @ 100 kHz
Impedance 160 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358029-16YXF470MEFC10X12.5
Ultra Librarian 3D Model Ultra Librarian 16YXF470MEFC10X12.5 CAD Model

Description

The Rubycon 1358029-16YXF470MEFC10X12.5 is a high-quality aluminum electrolytic capacitor.

  • Capacitance: 470 µF
  • Voltage Rating: 16 V
  • Application: General Purpose
  • Operating Temperature: -40°C to 105°C
  • Package: Radial, Can
  • Diameter: 10.00mm
  • Height: 14.00mm
  • Lifetime: 7000 hours @ 105°C
  • Equivalent Series Resistance (ESR): Low
  • Ripple Current (Low Frequency): 435 mA @ 120 Hz
  • Ripple Current (High Frequency): 580 mA @ 100 kHz
  • Mounting Type: Through Hole
  • Packaging: Bulk
