Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32H7
Package Tray
Core Processor ARM® Cortex®-M4/M7
Core Size 32-Bit Dual-Core
Speed 240MHz, 480MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O 168
Program Memory Size 1MB (1M x 8)
Program Memory Type FLASH
RAM Size 1M x 8
Supply Voltage - Operating 1.62V ~ 3.6V
Data Converters A/D 36x16b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 265-TFBGA
Supplier Device Package 240+25-TFBGA (14x14)
Base Product Number STM32
Standard Package 714
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Win Source Part Number 1262575-STM32H745XGH6
Ultra Librarian 3D Model Ultra Librarian STM32H745XGH6 CAD Model

Description

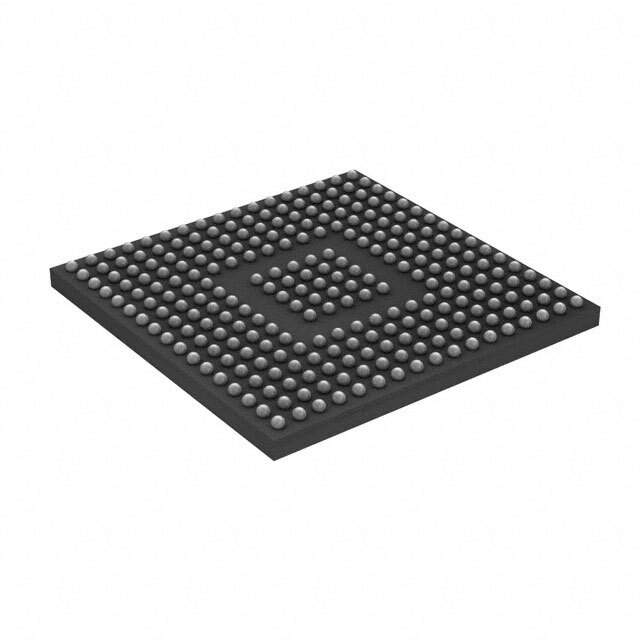

STM32H745XGH6 Microcontroller

The STM32H745XGH6 is a state-of-the-art dual-core microcontroller from STMicroelectronics, designed to deliver high computational power and a rich set of peripherals to meet the demanding requirements of advanced embedded applications. This microcontroller is part of the STM32H7 series, which is renowned for its high performance and efficiency.

Key Features:

  • Dual-Core Architecture: At the heart of the STM32H745XGH6 is a dual-core architecture featuring an ARM® Cortex®-M7 core running up to 480 MHz and a Cortex®-M4 core running up to 240 MHz. This combination allows for efficient task separation and real-time operation, making it ideal for complex applications that require multitasking.
  • Advanced Memory: The device comes equipped with 1Mbyte of Flash memory and 564 Kbytes of RAM, providing ample storage for code and data. The memory architecture is designed for high-speed operation, ensuring smooth performance even under heavy processing loads.
  • Rich Connectivity: To cater to various communication needs, the STM32H745XGH6 includes a comprehensive set of peripherals, including multiple UARTs, SPI, I2C interfaces, USB OTG, Ethernet, and CAN interfaces. This connectivity allows for easy integration into different systems and supports a wide range of communication protocols.
  • Graphics Support: For applications with a graphical user interface, the STM32H745XGH6 offers an LCD-TFT controller, which enables the creation of smooth and dynamic user interfaces.
  • Advanced Security: Security features such as hardware-based AES encryption and a random number generator ensure that data remains secure, making this microcontroller suitable for applications where data integrity and confidentiality are critical.
  • Power Efficiency: Designed with power efficiency in mind, the STM32H745XGH6 includes features such as flexible power modes and an adaptive real-time ART Accelerator™, which helps to reduce the power consumption while maintaining high performance.

Applications:

The STM32H745XGH6 is versatile and can be used in a wide range of applications, including industrial control systems, IoT devices, automotive electronics, medical equipment, and complex embedded systems that require rich graphics, high-speed processing, and secure data handling.

With its robust design and extensive feature set, the STM32H745XGH6 from STMicroelectronics is an excellent choice for developers looking to push the boundaries of what's possible with modern microcontrollers.
