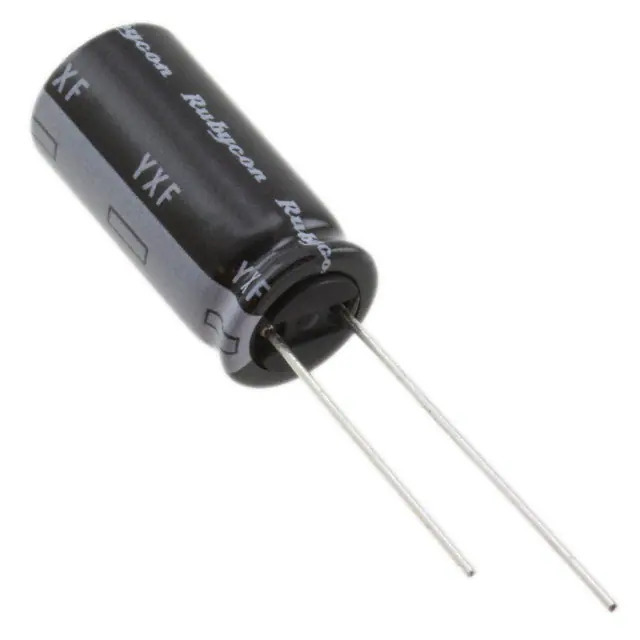

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Bulk
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.125 A @ 120 Hz
Ripple Current @ High Frequency 1.5 A @ 100 kHz
Impedance 78 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357852-16YXF1000MEFC10X20
Ultra Librarian 3D Model Ultra Librarian 16YXF1000MEFC10X20 CAD Model

Description

The Rubycon 1357852-16YXF1000MEFC10X20 is a high-capacity aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 1000 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 1.125 A @ 120 Hz
  • Ripple Current (High Frequency): 1.5 A @ 100 kHz
  • Package: Radial, can
  • Mounting: Through hole
  • Size: 0.394" in diameter
  • Height: 0.866"
  • Lifetime: 7000 hours @ 105°C
  • Manufacturer: Rubycon
  • Series: YXF
  • Product Status: Active
  • Performance: Long lifespan and reliable performance.
