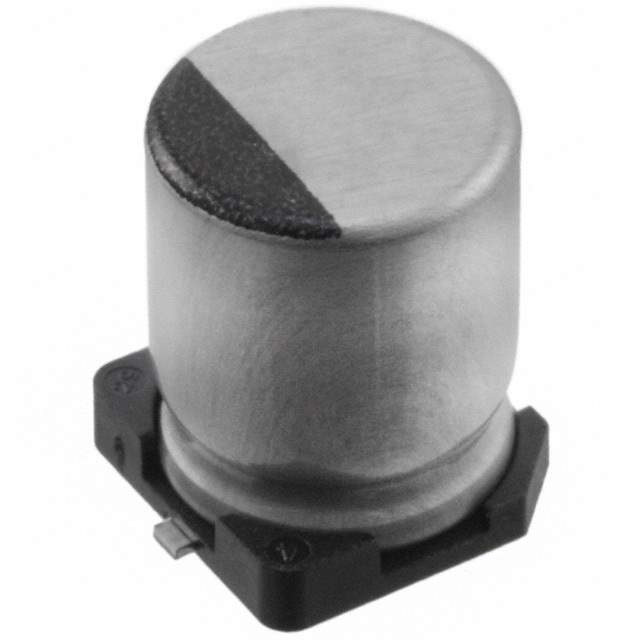

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 360 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 160 mOhms
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-1543-6,16TZV470M8X105,1189-1543-1,1189-1543-2
Standard Package 500
Win Source Part Number 1012333-16TZV470M8X10.5
Ultra Librarian 3D Model Ultra Librarian 16TZV470M8X10.5 CAD Model

Description

The Rubycon TZV series aluminum electrolytic capacitor is designed for automotive applications.

  • Capacitance: 470 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Impedance: 160 mOhms
  • ESR (Equivalent Series Resistance): Not specified
  • Polarized: Yes
  • Surface-Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Package/Case: Radial, can - SMD
  • Temperature Range for Operating: -55°C to 105°C
  • Lifetime @ Temperature: 2000 hours @ 105°C
  • Ripple Current @ Low Frequency: 360 mA @ 120 Hz
  • Ripple Current @ High Frequency: 600 mA @ 100 kHz
  • Dimensions: 0.315" Dia (8.00mm)
