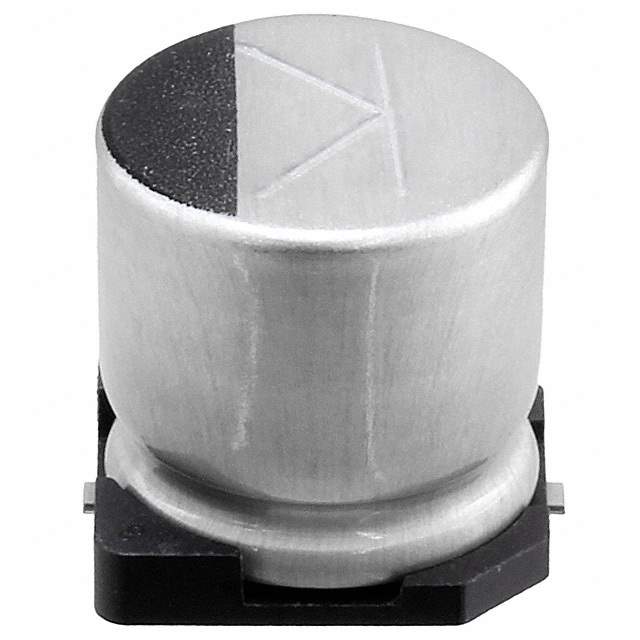

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TLV
Package Tape & Reel
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 510 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Impedance 80 mOhms
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337875-16TLV680M10X10.5
Ultra Librarian 3D Model Ultra Librarian 16TLV680M10X10.5 CAD Model

Description

The Rubycon TLV series aluminum electrolytic capacitor is designed for use in automotive applications.

  • Capacitance: 680 µF
  • Tolerance: ±20%
  • Voltage Rating: 16 V
  • Impedance: 80 mOhms
  • ESR: Not Specified
  • Polarization: Polarized
  • Package/Case: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Standard Package: 500
  • AEC-Q200: Rated
  • Lifetime: 5000 Hours @ 105°C
