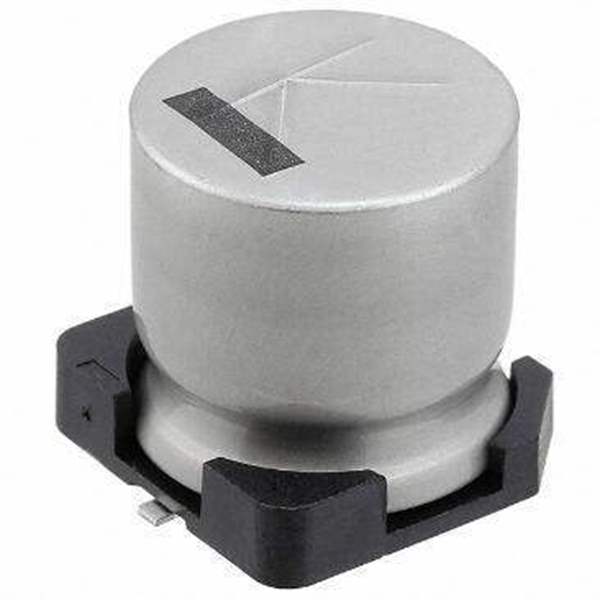

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Rubycon
Category Capacitors Aluminum Electrolytic Capacitors
Part Status Active
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ripple Current @ Low Frequency 1.08 A @ 120 Hz
Ripple Current @ High Frequency 1.8 A @ 100 kHz
Impedance 45 mOhms
Size / Dimension 0.630" Dia (16.00mm)
Win Source Part Number WS1307734-16TLV2200M16X16.5
Ultra Librarian 3D Model Ultra Librarian 16TLV2200M16X16.5 CAD Model

Description

2200 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
