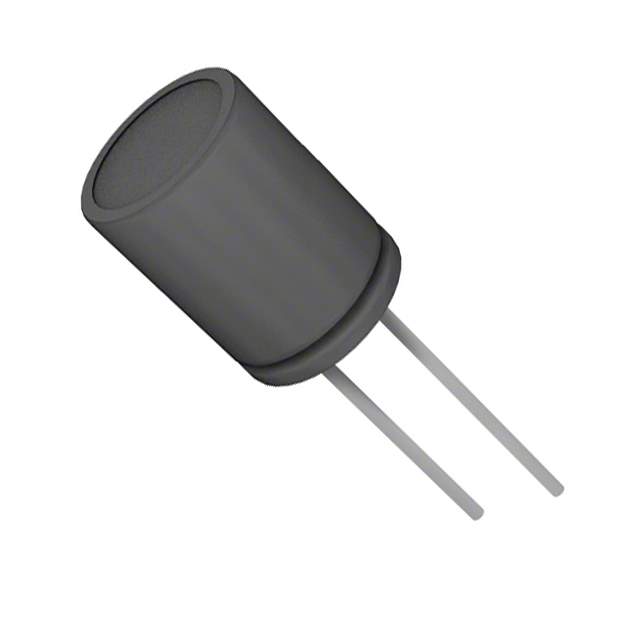

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Packaging Bulk
Status Active
Capacitance 20μF
Tolerance ±10%
Voltage Rating 160V
Temperature Range - Operating -40°C to 130°C
Polarization Polar
Applications Automotive
Lead Spacing 0.197" (5.00mm)
Height - Seated (Max) 0.571" (14.50mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 1003036-160RX3020K10X12.5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 160RX3020K10X12.5 CAD Model

Description

The Rubycon 1003036-160RX3020K10X12.5 aluminum electrolytic capacitor is a polarized capacitor with a capacitance of 20μF and a voltage rating of 160V.

  • Capacitance: 20μF
  • Voltage Rating: 160V
  • Package: radial, can
  • Mounting: through hole
  • Diameter: 0.492" (12.50mm)
  • Seated Height: 0.571" (14.50mm)
  • Application: automotive
  • Tolerance: ±10%
  • Temperature Range: -40°C to 130°C
  • REACH: unaffected
  • Popularity: medium
