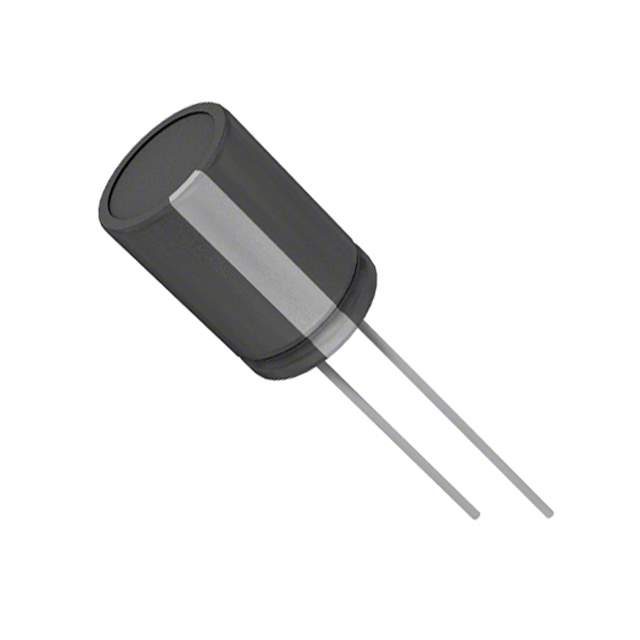

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series LLE
Package Bulk
Capacitance 15 µF
Tolerance ±20%
Voltage - Rated 160 V
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 92 mA @ 120 Hz
Ripple Current @ High Frequency 174 mA @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.531" (13.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337797-160LLE15MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 160LLE15MEFC8X11.5 CAD Model

Description

The Rubycon 1337797-160LLE15MEFC8X11.5 Capacitor is a high-quality aluminum electrolytic capacitor that is perfect for general-purpose applications.

  • Capacitance: 15 µF
  • Voltage Rating: 160 V
  • Tolerance: ±20%
  • Lead Spacing: 0.138" (3.50mm)
  • ESR (Equivalent Series Resistance): -
  • Lifetime @ Temp.: 15000 Hrs @ 105°C
  • Polarization: Polarized
  • Temperature Range: -40°C to 105°C
  • Package / Case: Radial, Can
  • Surface Mount Land Size: -
  • Mounting Type: Through Hole
  • Package: Bulk
  • Diameter: 0.315" Dia (8.00mm)
