Same model may have multiple batches, images only for reference.

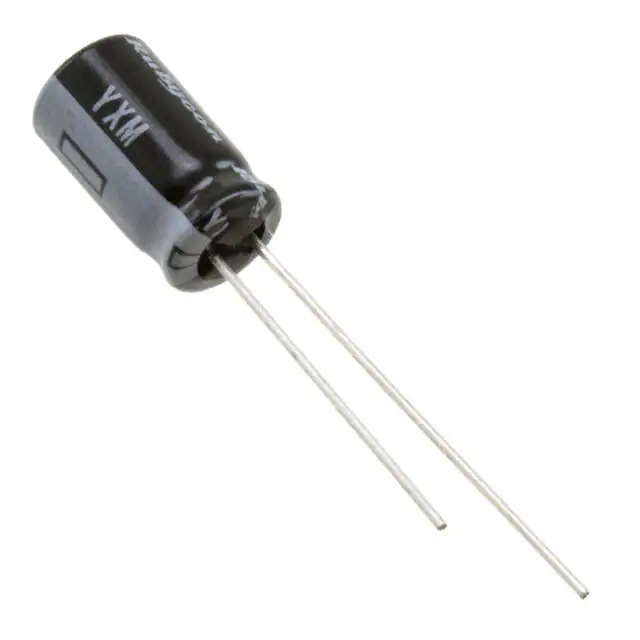

100YXM22MEFC8X11.5 Rubycon
Same model may have multiple batches, images only for reference.

100YXM22MEFC8X11.5

Part No 100YXM22MEFC8X11.5
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 100V RADIAL / 22 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXM
Package Tape & Box (TB)
Product Status Obsolete
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 126.5 mA @ 120 Hz
Ripple Current @ High Frequency 230 mA @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357833-100YXM22MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 100YXM22MEFC8X11.5 CAD Model

Description

The Rubycon 1357833-100YXM22MEFC8X11.5 is an aluminum electrolytic capacitor with a capacitance of 22 µF and a voltage rating of 100 V.

  • Series: YXM
  • Capacitance: 22 µF
  • Voltage Rating: 100 V
  • Application: General Purpose
  • Temperature Range: -40°C to 105°C
  • Lifetime: 10000 hours @ 105°C
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Lead Spacing: 3.50mm
  • Size/Dimension: 8.00mm in diameter and 13.00mm in height
  • Ripple Current (Low Frequency): 126.5 mA @ 120 Hz
  • Ripple Current (High Frequency): 230 mA @ 100 kHz
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Polar
