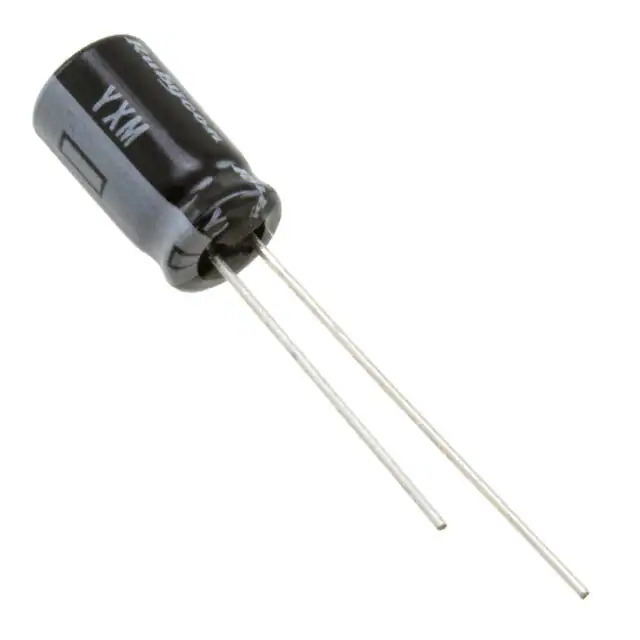

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXM
Package Tape & Box (TB)
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 147 mA @ 120 Hz
Ripple Current @ High Frequency 210 mA @ 100 kHz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357767-35YXM47MEFRT16.3X11
Ultra Librarian 3D Model Ultra Librarian 35YXM47MEFRT16.3X11 CAD Model

Description

The 1357767-35YXM47MEFRT16.3X11 is an aluminum electrolytic capacitor from Rubycon.

  • Capacitance: 47 μF
  • Voltage - Rated: 35 V
  • Series: YXM
  • Application: General Purpose
  • Temperature Range: -40°C to 105°C
  • Lifetime @ Temp.: 10000 Hrs @ 105°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Tolerance: ±20%
  • Polarization: Polar
  • Ripple Current - Low Frequency: 147 mA @ 120 Hz
  • Ripple Current - High Frequency: 210 mA @ 100 kHz
  • Lead Spacing: 0.098" (2.50mm)
  • Size / Dimension: 0.248" Dia (6.30mm)
  • Impedance: Not Specified
  • Status: Active
  • REACH: Unaffected
