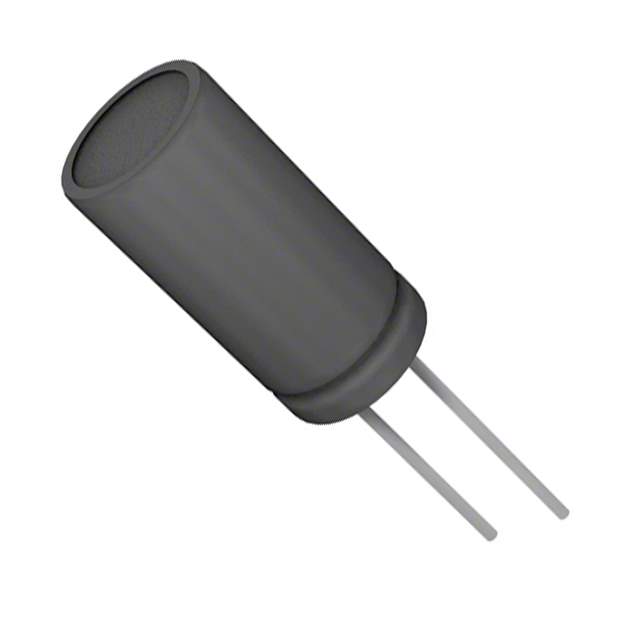

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 728 mA @ 120 Hz
Ripple Current @ High Frequency 1.04 A @ 100 kHz
Impedance 120 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 100YXJ100M10X20-ND,1189-2149
Standard Package 1,000
Win Source Part Number 1329087-100YXJ100M10X20
Ultra Librarian 3D Model Ultra Librarian 100YXJ100M10X20 CAD Model

Description

This capacitor is an aluminum electrolytic capacitor with a capacitance of 100µF and a voltage rating of 100V.

  • Capacitance: 100µF
  • Voltage Rating: 100V
  • Tolerance: ±20%
  • Impedance: 120 mOhms
  • Ripple Current: 728 mA @ 120 Hz and 1.04 A @ 100 kHz
  • Size: 0.394" Dia (10.00mm)
  • Height: 0.866" (22.00mm)
  • Temperature Range: -40°C ~ 105°C
  • Application: General-purpose
  • Package: Bulk
  • Case/Package: Radial, can
  • Mounting Type: Through Hole
