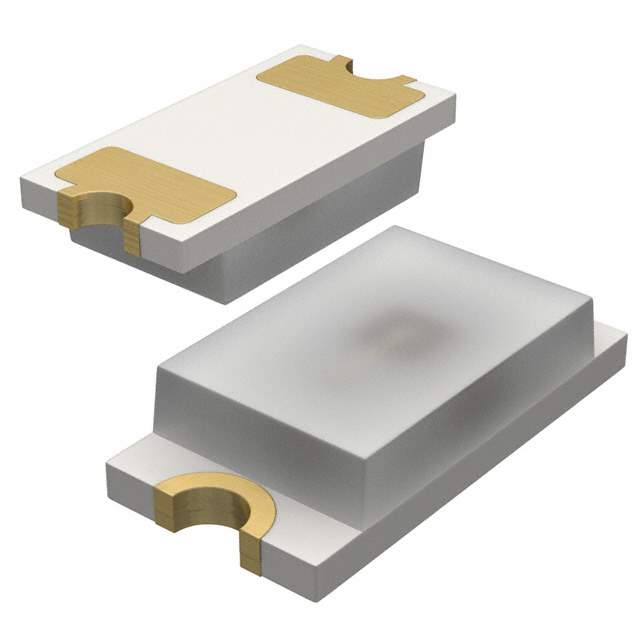

SML-E12U8WT86Q Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Color Red
Lens Color White
Lens Transparency Diffused
Millicandela Rating 63mcd
Lens Style/Size Rectangle with Flat Top, 1.20mm x 0.80mm
Forward Voltage 2.2V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 620nm
Case / Package 0603 (1608 Metric)
Height (Max) 0.46mm
Win Source Part Number 047093-SML-E12U8WT86Q
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SML-E12U8WT86Q CAD Model

Description

Rohm Semiconductor's SML-E12U8WT86Q is a high-quality optoelectronic component.

  • Shape: Rectangular shape with a flat top
  • Size: 1.20mm x 0.80mm
  • Lens Transparency: Diffused
  • Lens Color: White
  • Forward Voltage: 2.2V
  • Millicandela Rating: 63mcd
  • Wavelength-Dominant: 620nm
  • Current-Test: 20mA
  • Package: Reel - TR
  • Height: 0.46mm
