Same model may have multiple batches, images only for reference.

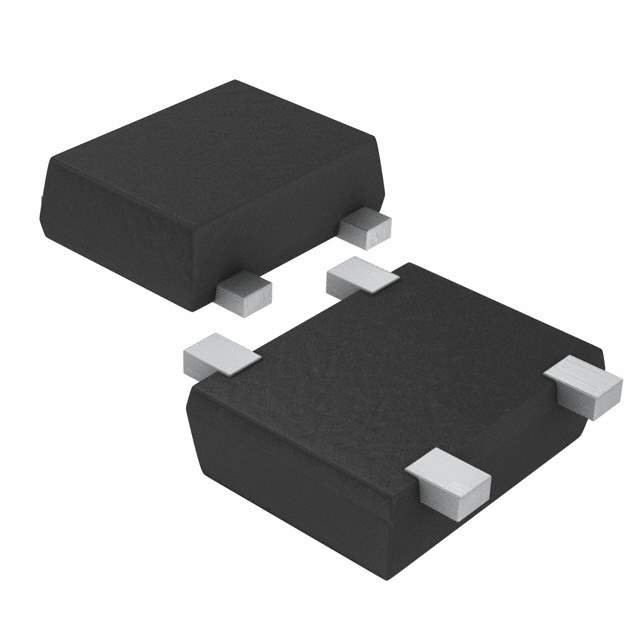

RB480Y-40T2R Real Image
Same model may have multiple batches, images only for reference.

RB480Y-40T2R

Part No RB480Y-40T2R
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 40V EMD4
Datasheet
RB480Y-40T2R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Diode Configuration 2 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 550mV @ 100mA
Current - Reverse Leakage @ Vr 10μA @ 40V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Case / Package EMD4
Win Source Part Number 027131-RB480Y-40T2R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RB480Y-40T2R CAD Model

Description

The RB480Y-40T2R is a Schottky diode manufactured by Rohm Semiconductor.

  • Application: Various electronic applications that require high performance and reliability.
  • Package: EMD4
  • Voltage - DC Reverse (Vr): 40V
  • Voltage - Forward (Vf): 550mV @ 100mA
  • Diode Configuration: 2 independent
  • Current - Average Rectified (Io) (per diode): 200mA
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
