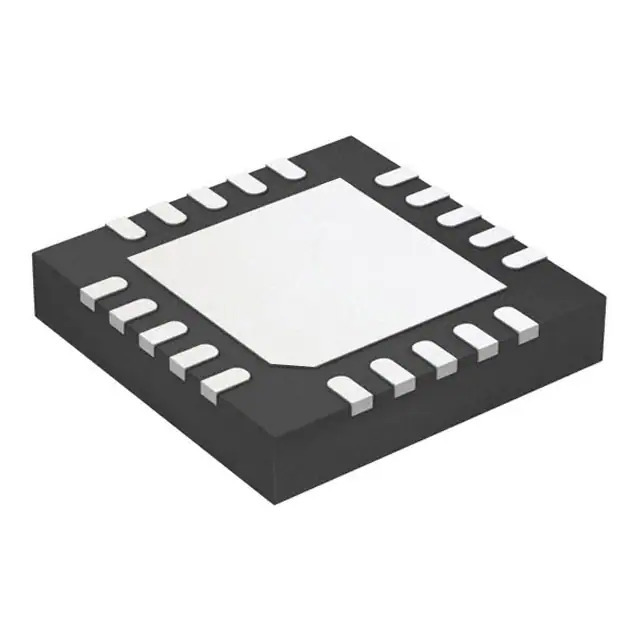

Same model may have multiple batches, images only for reference.
BM14270AMUV-LBE2 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

BM14270AMUV-LBE2

Part No BM14270AMUV-LBE2
Manufacturer Rohm Semiconductor
Catalog Current Transducers
Description CURRENT SENSOR 1CHAN 20VFQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Rohm Semiconductor
Series -
Package Tape & Reel
Product Status Active
For Measuring AC/DC
Sensor Type Closed Loop
Current - Sensing -
Number of Channels 1
Output -
Sensitivity 0.045mV/A
Frequency 400kHz
Linearity ±0.5%
Accuracy -
Voltage - Supply 2.7V ~ 5.5V
Response Time 350µs
Current - Supply (Max) 140µA
Temperature Range - Operating -40°C ~ 125°C
Polarization Bidirectional
Mounting Type Surface Mount
Package / Case 20-VFQFN Exposed Pad
Supplier Device Package VQFN20QV3535
Base Product Number BM14270
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1375807-BM14270AMUV-LBE2
Ultra Librarian 3D Model Ultra Librarian BM14270AMUV-LBE2 CAD Model

Description

The BM14270AMUV-LBE2 is a current sensor manufactured by Rohm Semiconductor.

  • Sensor Type: Closed Loop
  • Polarization: Bidirectional
  • Voltage Supply: 2.7V to 5.5V
  • Maximum Supply Current: 140μA
  • Response Time: 350μs
  • Sensitivity: 0.045mV/A
  • Current Type: AC/DC
  • Accuracy: ±0.5%
  • Mounting Type: Surface Mount
  • Package: 20-VFQFN Exposed Pad
  • Frequency: 400kHz
  • Mounting Technology: Surface Mount
  • REACH Status: Unaffected
  • ECCN: EAR99
