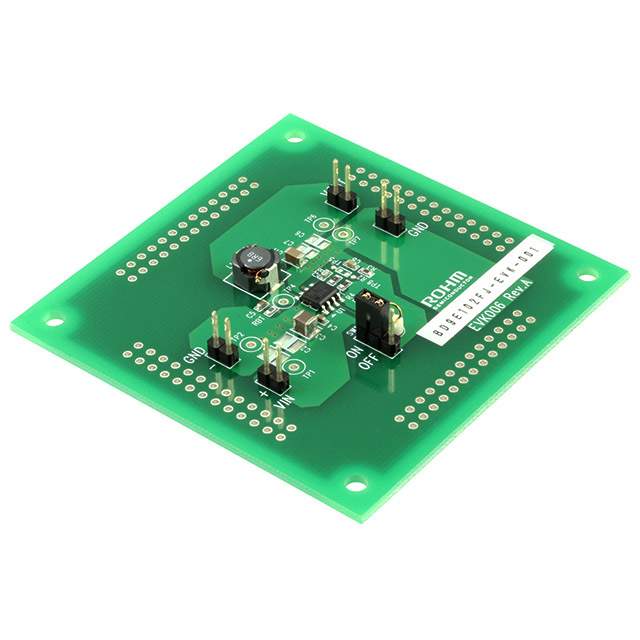

BD9E102FJ-EVK-001 Real Image
Same model may have multiple batches, images only for reference.

BD9E102FJ-EVK-001

Part No BD9E102FJ-EVK-001
Manufacturer Rohm Semiconductor
Catalog Evaluation Boards - DC/DC & AC/DC (Off - Line)SMPS
Description EVAL BOARD BD9E102FJ / BD9E102FJ DC to DC Converter and Switching Regulator Chip 1VDC to 18.2VDC Output Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Rohm Semiconductor
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 5V
Output Current 1A
Voltage - Input 7.2 V ~ 26 V
Regulator Topology Buck
Frequency - Switching 570kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part BD9E102
Win Source Part Number 769935-BD9E102FJ-EVK-001
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Family Name BD9E102FJ-EVK-001
Ultra Librarian 3D Model Ultra Librarian BD9E102FJ-EVK-001 CAD Model

Description

The BD9E102FJ-EVK-001 DC/DC step-down regulator is a fully populated board that comes with a non-isolated output.

  • Voltage Output: 5V
  • Input Voltage Range: 7.2V to 26V
  • IC/Part: BD9E102
  • Switching Frequency: 570kHz
  • Output Current: 1A
  • Applications: Development Boards, Kits, Programmers
  • Package Includes: One Board
  • Manufacturer: Rohm Semiconductor
  • Supply and Demand Status: Balanced
