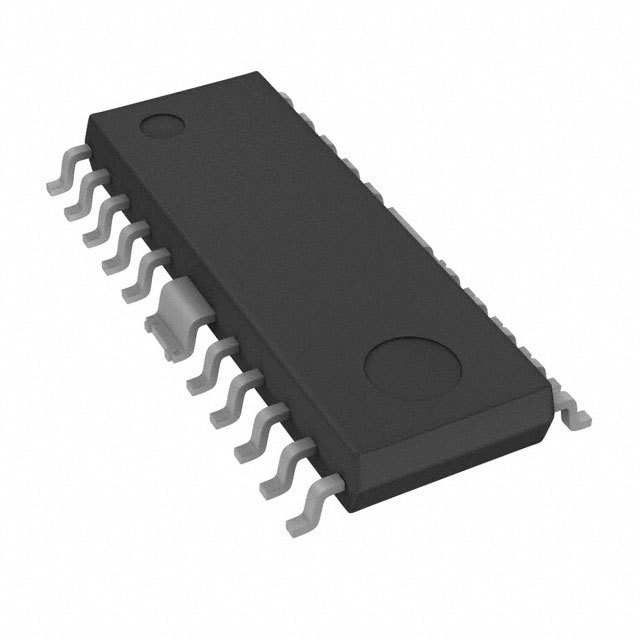

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 4
Operating Input Voltage(Min) 9V
Maximum Supply Voltage 35V
Channel Output Current 150mA
Frequency 150kHz
Dimming Analog, PWM
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 20-HSOP
Win Source Part Number 1023106-BD9394FP-E2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BD9394FP-E2 CAD Model

Description

The BD9394FP-E2 is a DC-DC regulator manufactured by Rohm Semiconductor.

  • Manufacturer: Rohm Semiconductor
  • Regulator Type: DC-DC
  • Topology: Step-up (boost)
  • Application: Backlight
  • Maximum Supply Voltage: 35V
  • Minimum Input Voltage: 9V
  • Number of Outputs: Four
  • Maximum Output Current: 150mA per channel
  • Operating Frequency: 150kHz
  • Dimming: Analog and PWM
  • Package: 20-HSOP
  • Operating Temperature: -40°C to 85°C (TA)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
