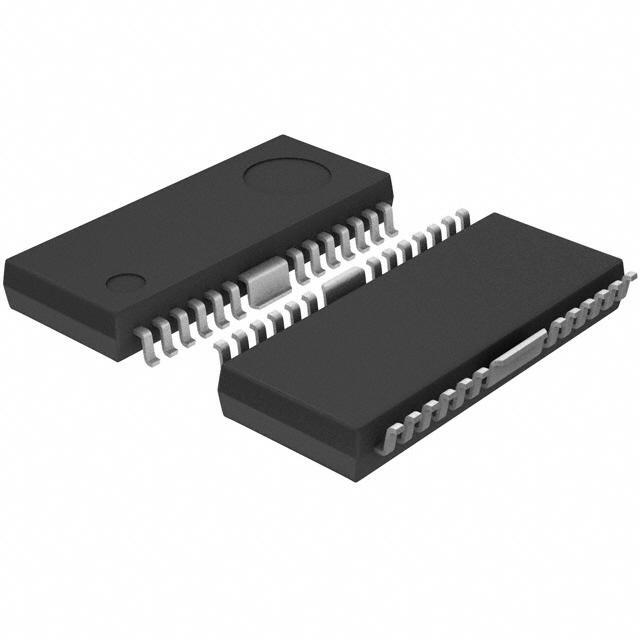

BD6395FP-E2 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

BD6395FP-E2

Part No BD6395FP-E2
Manufacturer Rohm Semiconductor
Catalog PMIC - Motor Drivers, Controllers
Description Standard 36V Stepping Motor Drivers
Datasheet
BD6395FP-E2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology DMOS
Step Resolution 1, 1/2, 1/4
Applications General
Output Current 1.2A
Operating Supply Voltage 16 V ~ 28 V
Voltage - Load 16 V ~ 28 V
Operating Temperature Range -25°C ~ 150°C (TJ)
Mounting SMD
Package 25-SOP (0.213", 5.40mm) + 2 Heat Tabs
Manufacturer Package 25-HSOP
Win Source Part Number 1152813-BD6395FP-E2
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Limited
Family Name BD6395
Introduction Date September 11, 2007
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian BD6395FP-E2 CAD Model

Description

The BD6395FP-E2 is an integrated circuit (IC) manufactured by Rohm Semiconductor.

  • Function: Fully integrated driver with control and power stages
  • Designed For: Use in various electronic applications, including motor control and general-purpose power switching
  • Voltage Range: 16V to 28V
  • Output Current: 1.2A
  • Output Configuration: Half-bridge
  • Number of Outputs: Four
  • Step Resolution: 1, 1/2, and 1/4
