BD16939AEFV-CE2 Rohm Semiconductor

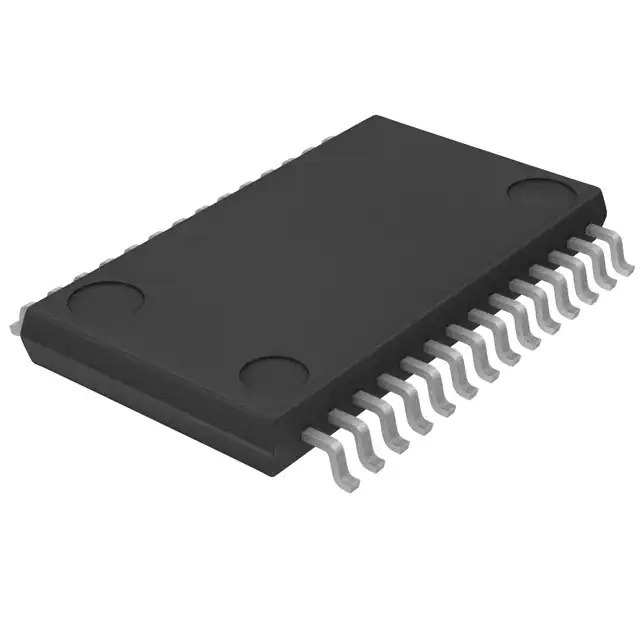

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Active
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (6)
Interface SPI
Technology DMOS
Step Resolution -
Applications Automotive
Current - Output 1A
Voltage - Supply 6.3V ~ 32V
Voltage - Load -
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 28-VSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 28-HTSSOP-B
Base Product Number BD16939
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1372116-BD16939AEFV-CE2
Ultra Librarian 3D Model Ultra Librarian BD16939AEFV-CE2 CAD Model

Description

The BD16939AEFV-CE2 is a fully integrated motor driver and controller IC manufactured by Rohm Semiconductor.

  • Application: Automotive
  • Standard: AEC-Q100
  • Package: 28-VSSOP with Exposed Pad
  • Operating Temperature: -40°C to 125°C
  • Output Configuration: Half Bridge
  • Motor Type: Bipolar Stepper, Brushed DC
  • Supply Voltage: 6.3V to 32V
  • Output Current (Max): 1A
  • Interface: SPI
