The DS2119ME/T&R, manufactured by Rochester Electronics, is a signal terminator designed for various interface applications. As a signal terminator, its primary function is to absorb unwanted signals and reflections on transmission lines, ensuring signal integrity and preventing data corruption. This is crucial in high-speed data communication systems where signal reflections can significantly degrade performance.

Applications:

• T1/E1 communication lines: Specifically designed to terminate T1 (1.544 Mbps) and E1 (2.048 Mbps) lines to minimize signal reflections.
• Telecommunications equipment: Used in PBX systems, channel banks, and other telecom infrastructure to maintain signal quality.
• Data transmission systems: Employed in networking equipment to terminate transmission lines.
• Digital cross-connect systems (DCS): Ensures signal integrity in DCS equipment.
• Routers and switches: Helps to maintain clean signals, preventing errors and improving throughput in network routers and switches.

Features:

• T1/E1 Line Termination: Specifically designed to provide impedance matching for T1/E1 lines.
• Surface Mount Technology (SMT): Facilitates automated assembly processes.
• Low Capacitance: Minimizes signal distortion.
• High Return Loss: Provides excellent signal reflection suppression.
• RoHS Compliant: Compliant with Restriction of Hazardous Substances directive, ensuring environmental safety.

Benefits:

• Improved Signal Integrity: Minimizes signal reflections, resulting in cleaner and more reliable data transmission.
• Reduced Bit Error Rate (BER): Decreases the occurrence of data errors, enhancing system performance.
• Enhanced System Reliability: Contributes to the overall stability and reliability of communication systems.
• Simplified Design: Offers a straightforward solution for impedance matching and signal termination.
• Cost-Effective: Provides a reliable termination solution at a competitive cost.

Additional Details:

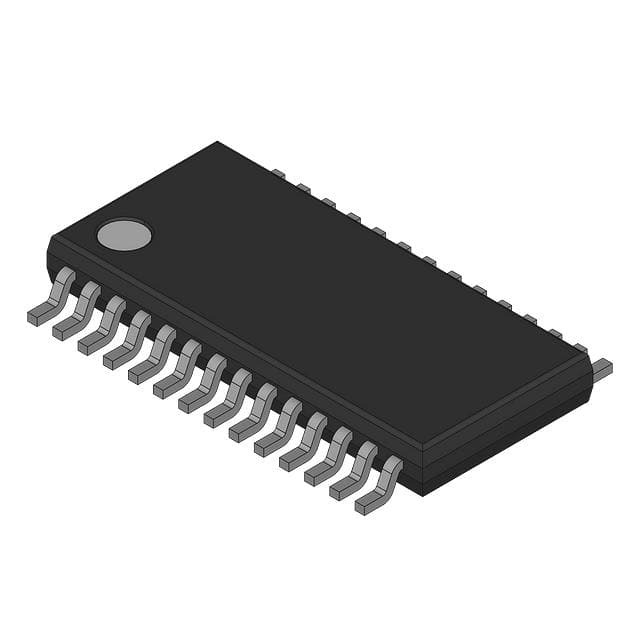

The DS2119ME/T&R operates by providing a specific impedance (typically 75 ohms or 120 ohms) to match the characteristic impedance of the transmission line. This matching prevents signals from being reflected back to the source, which can cause interference and data corruption. The device is designed for surface mount assembly, making it easy to integrate into modern electronic designs. It typically comes in a small outline package (SOP) or similar, allowing for efficient use of board space. Its low capacitance characteristic ensures that the signal is not distorted as it passes through the terminator.
