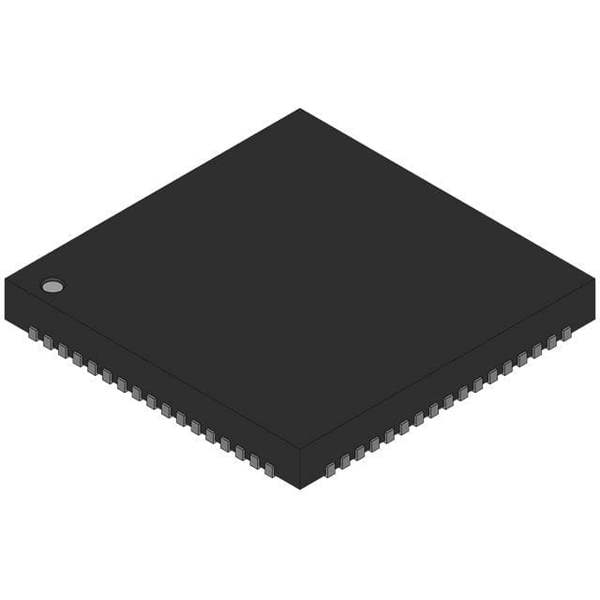

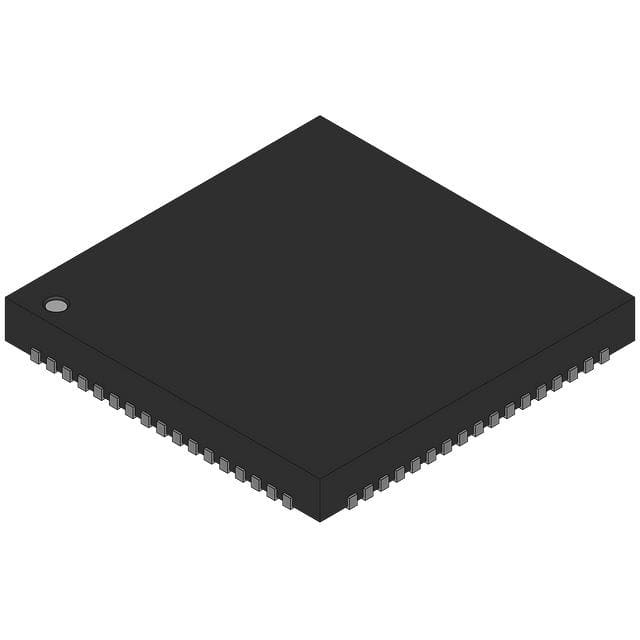

The AD9020KE, manufactured by Rochester Electronics, is a high-speed, 10-bit analog-to-digital converter (ADC). This component is designed for applications requiring high accuracy and fast conversion rates. Rochester Electronics specializes in providing continued support for mature and end-of-life products, ensuring availability for long-term production and maintenance needs.

Applications:

• High-speed data acquisition systems
• Medical imaging equipment
• Radar systems
• Digital oscilloscopes
• Communication systems

Features:

• 10-bit Resolution: Provides high accuracy in converting analog signals to digital data.
• High Sampling Rate: Capable of fast conversion rates, enabling the capture of rapidly changing signals.
• Low Power Consumption: Designed for efficient power usage, suitable for battery-powered applications.
• Wide Analog Input Bandwidth: Supports a broad range of input frequencies.
• Differential Input: Offers improved noise immunity and common-mode rejection.

Benefits:

• Accurate Signal Conversion: Ensures precise digital representation of analog signals.
• Real-Time Data Acquisition: Enables the capture of fast-changing signals for analysis and processing.
• Extended System Lifespan: Rochester Electronics' support ensures the availability of this component for long-term projects.
• Improved System Performance: High-speed and accuracy contribute to enhanced overall system performance.
• Reduced Noise: Differential input minimizes noise interference, improving signal integrity.

Additional Details:

The AD9020KE typically requires a stable voltage reference and careful layout considerations to achieve optimal performance. Decoupling capacitors should be placed close to the power supply pins to minimize noise. The input impedance of the ADC should be carefully matched to the source impedance to prevent signal reflections and ensure accurate signal transfer.

The conversion rate of the AD9020KE is a critical parameter and should be selected based on the Nyquist theorem, which states that the sampling rate must be at least twice the highest frequency component of the analog signal to avoid aliasing. Proper filtering of the input signal is also essential to remove any unwanted high-frequency noise that could degrade the accuracy of the conversion process.

Rochester Electronics provides datasheets and application notes for the AD9020KE, which contain detailed information on the device's specifications, performance characteristics, and application circuits. These resources are invaluable for engineers designing systems that utilize this ADC.
