Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer RFMD
Packaging Reel package
Function Synthesizer
Frequency 85MHz ~ 2.7GHz
RF Type LTE, WiMax

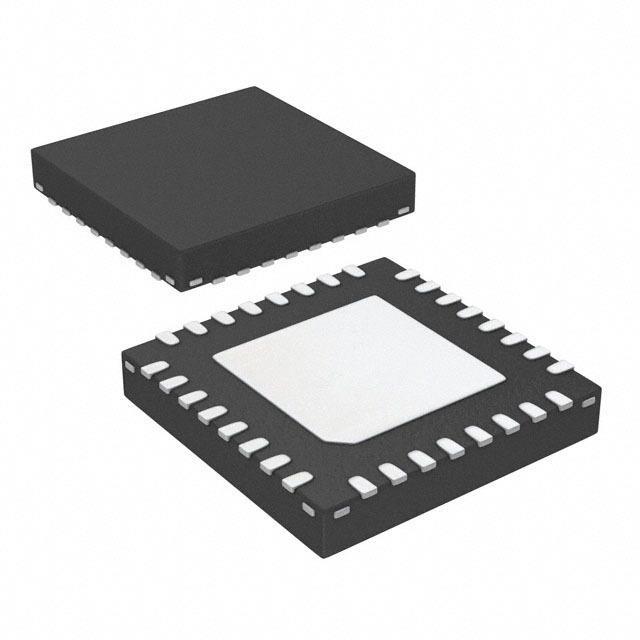

Package 32-VFQFN Exposed Pad
Manufacturer Package 32-QFN (5x5)
Win Source Part Number 793179-RFFC2071TR13
Family Name RFFC2071
Introduction Date May 20, 2008
ECCN 5A991.g
Estimated EOL Date Unknown
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RFFC2071TR13 CAD Model

Description

The RFFC2071TR13 is a highly integrated Front-End IC (FEIC) designed for satellite and cable set-top box applications. This IC integrates multiple functions, including a low-noise amplifier (LNA), mixer, and local oscillator (LO) buffer, to simplify receiver design and improve performance.

Applications

  • Satellite Set-Top Boxes: Used in satellite receivers for signal amplification and down-conversion.
  • Cable Set-Top Boxes: Employed in cable receivers for similar signal processing functions.
  • L-Band Receivers: Suitable for L-band receiver applications requiring high integration.
  • Direct Broadcast Satellite (DBS) Systems: Utilized in DBS systems for efficient signal reception.
  • VSAT Systems: Used in Very Small Aperture Terminal (VSAT) systems for data communication.

Features

  • Integrated LNA: Includes a low-noise amplifier for improved signal sensitivity.
  • Integrated Mixer: Features a mixer for down-converting the RF signal to an intermediate frequency (IF).
  • Integrated LO Buffer: Incorporates a local oscillator buffer for driving the mixer.
  • Low Noise Figure: Offers a low noise figure for enhanced signal-to-noise ratio.
  • High Linearity: Provides high linearity to minimize signal distortion.

Benefits

  • Simplified Receiver Design: Integrates multiple functions, reducing the number of external components.
  • Improved Performance: Low noise figure and high linearity enhance receiver performance.
  • Reduced Board Space: Integrated design saves board space in compact set-top boxes.
  • Lower Power Consumption: Optimized for low power consumption to meet energy efficiency requirements.
  • Cost-Effective Solution: Provides a cost-effective solution for receiver front-end applications.

Additional Details

The RFFC2071TR13 typically operates in the L-band frequency range (1-2 GHz). It requires an external local oscillator signal. The gain and noise figure specifications can vary depending on the specific operating conditions. The device is typically available in a small surface-mount package. Consult the datasheet for detailed specifications and application notes.
