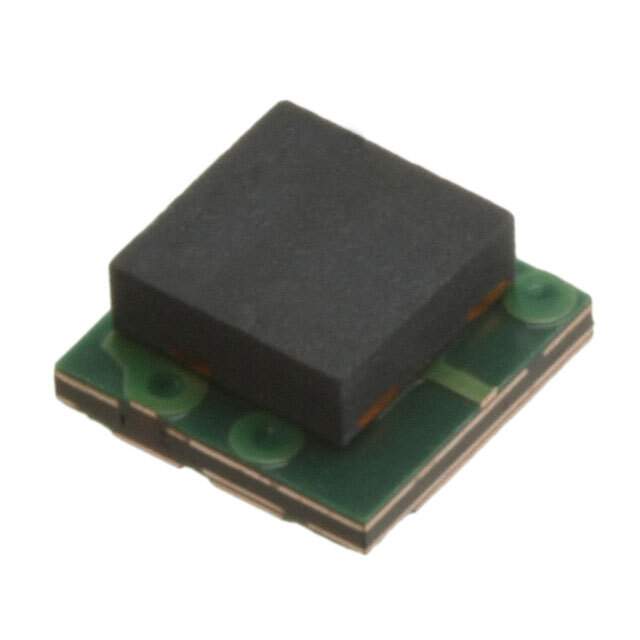

The RF4180 from RF Micro Devices is a high-linearity, high-gain amplifier designed for various wireless communication applications. This amplifier operates within a broad frequency range, making it suitable for numerous systems. Its robust design ensures reliable performance in demanding environments, while its optimized architecture provides excellent gain and linearity.

Applications:

• Wireless infrastructure
• Cellular base stations
• Repeaters
• Wireless data systems
• Public Mobile Radio (PMR)

Features:

• High gain
• High linearity
• Wideband operation
• Low noise figure
• Integrated matching network
• Compact package

Benefits:

• Improved signal strength: The high gain of the RF4180 allows for improved signal strength and range in wireless systems.
• Reduced distortion: The high linearity ensures minimal signal distortion, leading to enhanced signal quality.
• Increased system capacity: By maintaining signal integrity, the RF4180 contributes to increased system capacity.
• Simplified design: The integrated matching network simplifies the design process, reducing the need for external components.
• Enhanced reliability: The robust design ensures reliable operation in various environmental conditions.

Technical Specifications:

The RF4180 typically operates with a supply voltage of 5V and draws a quiescent current. Its frequency range is optimized for common cellular and wireless bands. The amplifier's gain is typically around 20dB, and its output power is designed to meet the requirements of various wireless standards. Input and output matching are optimized for 50-ohm systems. The device is usually available in a small surface-mount package to facilitate easy integration into compact wireless devices. Detailed specifications can be found in the RF Micro Devices datasheet for the RF4180.
