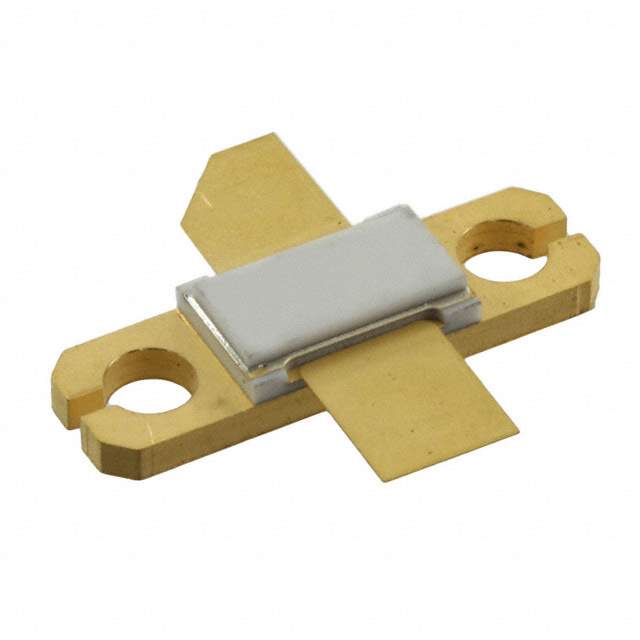

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF/IF and RFID>RF Amplifiers
Mfr RFMD
Package Cut Tape (CT)
Product Status Obsolete
Frequency 0Hz ~ 3.5GHz
Gain 14dB
RF Type General Purpose
Test Frequency 2.14GHz
Mounting SMD (SMT)
Package / Case 3-CSMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN MMIC 3A001B2
HTSUS 8542.33.0001
Other Names RF3934D,689-1112-1,689-1112-2,RF3934,689-1112-ND,689-1112
Standard Package 50
Win Source Part Number 1014260-RF3934SR
Ultra Librarian 3D Model Ultra Librarian RF3934SR CAD Model

Description

The RF/IF and RFID RF Amplifier with Win Source Part Number 1014260-RF3934SR is a high-performance amplifier that is designed to provide a gain of 14dB @ a test frequency of 2.14GHz.

  • Application: Suitable for use in a wide range of applications, including general purpose RF circuits.
  • Package: 3-CSMD
  • Standard Package: Cut tape (CT) standard package of 50.
  • Mounting: Surface-mount technology (SMT)
  • Status: Obsolete product from RFMD, and it is no longer in production.
