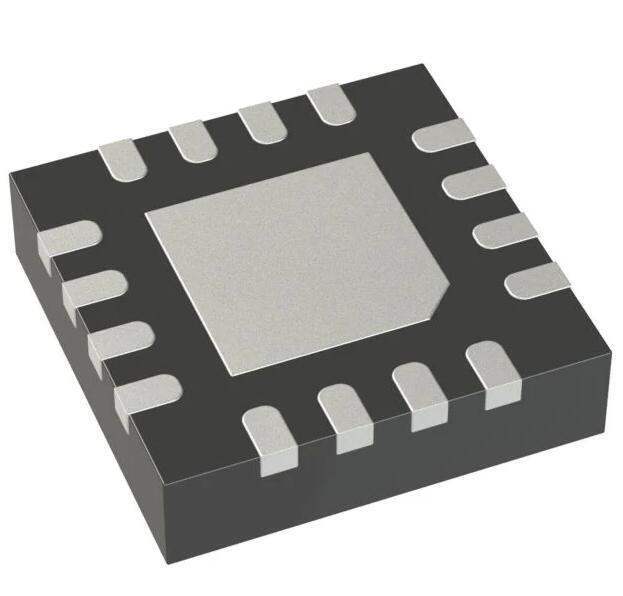

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tape & Reel (TR)
Product Status Active
Frequency 2.3GHz ~ 4.2GHz
P1dB 27.6dBm
Gain 41.2dB
Noise Figure 3.4dB
RF Type 5G, TDD
Voltage - Supply 4.75V ~ 5.25V
Current - Supply 94mA
Test Frequency 3.5GHz
Grade -
Mounting Type Surface Mount
Package / Case 16-VFQFN Exposed Pad
Supplier Device Package 16-HVQFN (3x3)
Ultra Librarian 3D Model Ultra Librarian BTS6303UJ CAD Model

Description

The BTS6303U is a wideband, high linearity, pre-driver amplifier for 5G massive MIMO infrastructure applications, with fast on-off switching to support TDD systems. The amplifier is designed to operate between 2.3 GHz and 4.2 GHz. It is housed in a 3 mm x 3 mm x 0.85 mm 16-terminal HVQFN package. The amplifier is ESD protected on all terminals.
