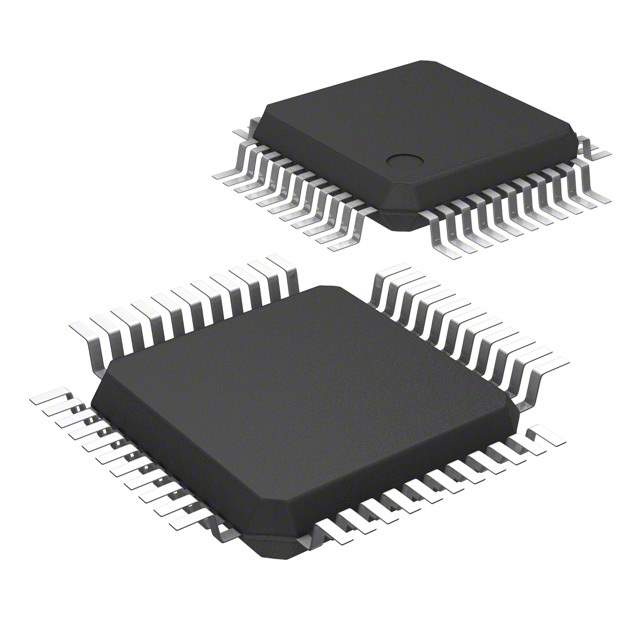

UPD78F0511AGB-GAF-AX Real Image
Same model may have multiple batches, images only for reference.

UPD78F0511AGB-GAF-AX

Part No UPD78F0511AGB-GAF-AX
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 16KB FLASH 44LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Renesas Electronics America
Packaging Tray
Core Processor 78K/0
Data Bus Width 8-Bit
Speed 20MHz
Connectivity 3-Wire SIO, I2C, LINbus, UART/USART
Peripherals LVD, POR, PWM, WDT
The number of I/O 37
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
Date RAM Size 768 x 8
Supply Voltage 1.8V ~ 5.5V
Data Converters A/D 8x10b
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 44-LQFP
Manufacturer Pack Quantity 160
MSL Level 3 (168 Hours)
Win Source Part Number 721063-UPD78F0511AGB-GAF-AX
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UPD78F0511AGB-GAF-AX CAD Model

Description

The Renesas Electronics America 721063-UPD78F0511AGB-GAF-AX is an integrated circuit with a 78K/0 core processor.

  • Maximum Speed: 20MHz
  • Connectivity: 3-Wire SIO, I2C, LINbus, and UART/USART
  • Peripherals: LVD, POR, PWM, and WDT
  • FLASH Program Memory: 16KB (16K x 8)
  • A/D Converter: 8x10b
  • Supply Voltage: 1.8V to 5.5V
  • Package: 44-LQFP
