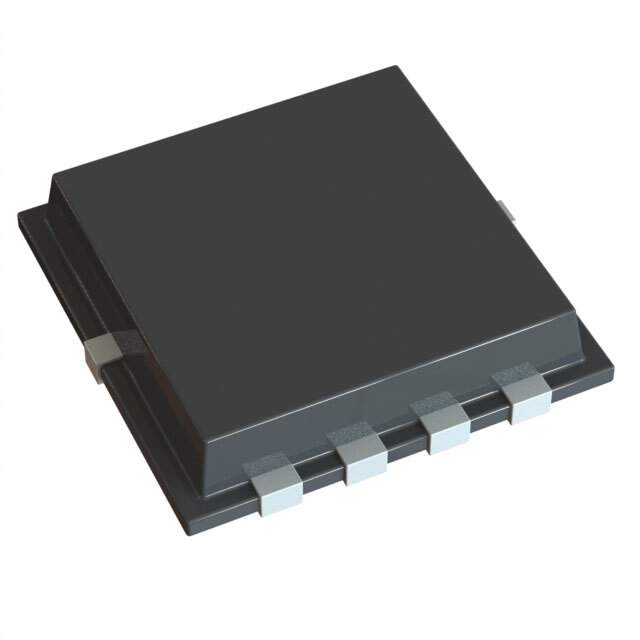

RJK03M5DNS-00#J5

Name: RJK03M5DNS-00#J5
Brand: Renesas Electronics America
SKU: 1001351
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RJK03M5DNS-00#J5
Manufacturer	Renesas Electronics America
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 25A 8HWSON / N-Channel 30 V 25A (Ta) 15W (Tc) Surface Mount 8-HWSON (3.3x3.3)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Renesas Electronics America Inc
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	25A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.3mOhm @ 12.5A, 10V
Gate Charge (Qg) (Max) @ Vgs	10.4 nC @ 4.5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1890 pF @ 10 V
Power Dissipation (Max)	15W (Tc)
Temperature Range - Operating	150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	8-HWSON (3.3x3.3)
Package / Case	8-PowerWDFN
Base Product Number	RJK03M5
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	RJK03M5DNS-00#J5-ND,RJK03M5DNS-00#J5CT,RJK03M5DNS-00#J5TR,RJK03M5DNS-00#J5DKR,-1161-RJK03M5DNS-00#J5CT
Standard Package	5,000
Win Source Part Number	1001351-RJK03M5DNS-00#J5
Ultra Librarian 3D Model	Ultra Librarian RJK03M5DNS-00#J5 CAD Model

Alternative Products

Description

The Renesas Electronics America RJK03M5DNS-00#J5 is an N-channel MOSFET transistor designed for use in discrete semiconductor products.

Drain to Source Voltage (Vdss): 30 V
Continuous Drain Current: 25A (Ta)
Maximum Power Dissipation: 15W (Tc)
Gate Charge (Qg) (Max) @ Vgs: 10.4 nC @ 4.5 V
Package / Case: 8-PowerWDFN
Supplier Device Package: 8-HWSON (3.3x3.3)
