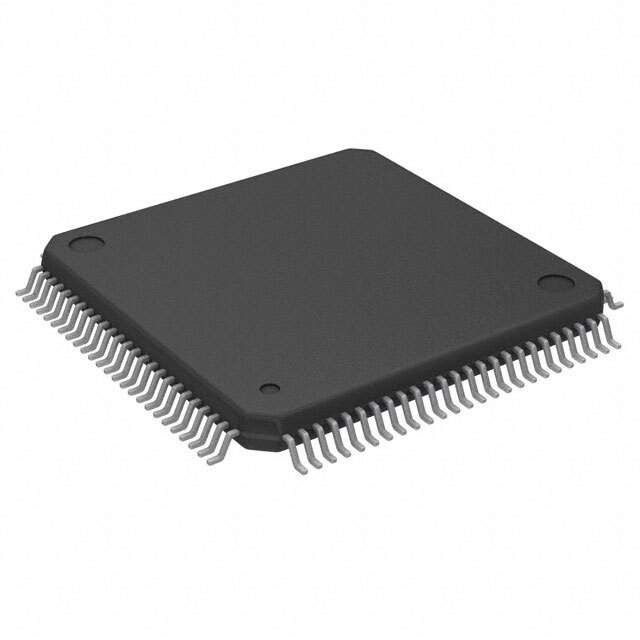

R5F566TEBDFP#30 Real Image
Same model may have multiple batches, images only for reference.

R5F566TEBDFP#30

Part No R5F566TEBDFP#30
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 512KB FLSH 100LFQFP / RXv3 series Microcontroller IC 32-Bit Single-Core 160MHz 512KB (512K x 8) FLASH 100-LFQFP (14x14)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series RX66T
Package Tray
Core Processor RXv3
Core Size 32-Bit Single-Core
Speed 160MHz
Connectivity CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 73
Program Memory Size 512KB (512K x 8)
Program Memory Type FLASH
EEPROM Size 32K x 8
RAM Size 64K x 8
Supply Voltage - Operating 2.7V ~ 5.5V
Data Converters A/D 22x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 100-LQFP
Supplier Device Package 100-LFQFP (14x14)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Other Names -1161-R5F566TEBDFP#30,559-R5F566TEBDFP#30
Standard Package 25
Win Source Part Number 980376-R5F566TEBDFP#30
Ultra Librarian 3D Model Ultra Librarian R5F566TEBDFP#30 CAD Model

Description

The R5F566TEBDFP#30 is a 32-bit single-core RX66T core processor microcontroller from Renesas Electronics America Inc.

  • Processing Speed: 160MHz
  • Program Memory Size: 512KB (512K x 8)
  • Program Memory Type: FLASH
  • Package Size: 100-LQFP (14x14)
  • Mounting Technology: SMD (SMT)
  • Category: Integrated Circuits (ICs)>Embedded - Microcontrollers
  • Temperature Range: -40°C ~ 85°C (TA)
  • Supply Voltage: 2.7V ~ 5.5V
