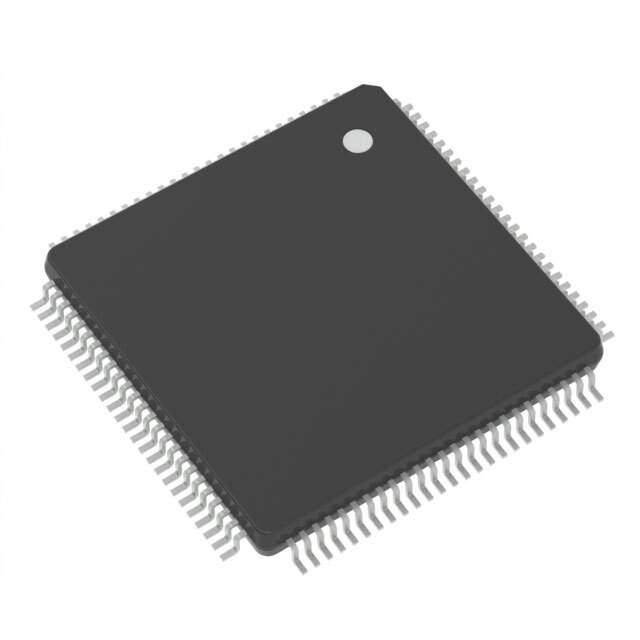

R5F565NEHDFB#30 Real Image
Same model may have multiple batches, images only for reference.

R5F565NEHDFB#30

Part No R5F565NEHDFB#30
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 2MB FLASH 144LFQFP / RXv2 series Microcontroller IC 32-Bit Single-Core 120MHz 2MB (2M x 8) FLASH 144-LFQFP (20x20)
Datasheet
R5F565NEHDFB#30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series RX65N
Package Tray
Core Processor RXv2
Core Size 32-Bit Single-Core
Speed 120MHz
Connectivity CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, QSPI, SCI, SPI, UART/USART, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 111
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
EEPROM Size 32K x 8
RAM Size 640K x 8
Supply Voltage - Operating 2.7V ~ 3.6V
Data Converters A/D 29x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 144-LQFP
Supplier Device Package 144-LFQFP (20x20)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A002A1 REN
HTSUS 8542.31.0001
Other Names 559-R5F565NEHDFB#30,-1161-R5F565NEHDFB#30
Standard Package 60
Win Source Part Number 1153265-R5F565NEHDFB#30
Ultra Librarian 3D Model Ultra Librarian R5F565NEHDFB#30 CAD Model

Description

The Renesas Electronics America Inc R5F565NEHDFB#30 is a microcontroller that belongs to the RX65N series of microcontrollers.

  • Series: RX65N
  • Core Size: 32-Bit Single-Core
  • Speed: 120MHz
  • Package: 60
  • Connectivity: CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, QSPI, SCI, SPI, UART/USART, USB
  • Package/Case: 144-LQFP
  • MSL Level: 3 (168 Hours)
  • REACH: Unaffected
  • ECCN: 5A002A1
  • Manufacturer: Renesas Electronics America Inc
