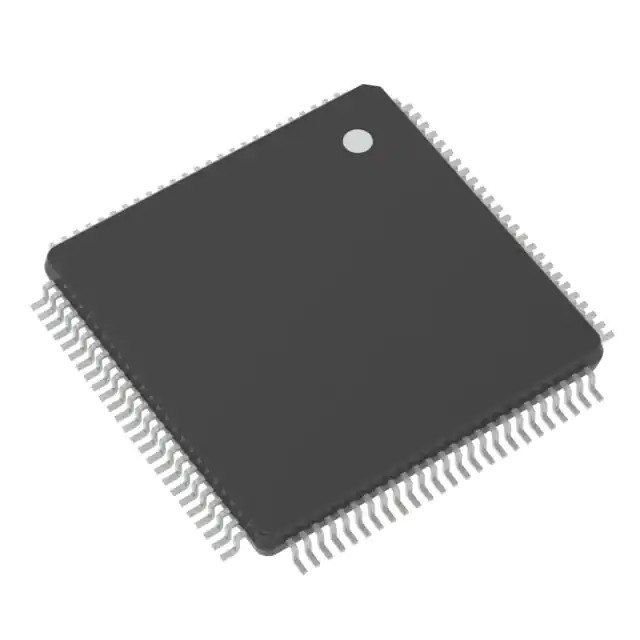

R5F56514BDFB#30

Name: R5F56514BDFB#30
Brand: Renesas Electronics America
SKU: 1356541
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	R5F56514BDFB#30
Manufacturer	Renesas Electronics America
Catalog	Embedded - Microcontrollers
Description	IC MCU 32BIT 512KB FLSH 144LFQFP / RXv2 RX651 Microcontroller IC 32-Bit Single-Core 120MHz 512KB (512K x 8) FLASH 144-LFQFP (20x20)
Datasheet	R5F56514BDFB#30 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr	Renesas Electronics America Inc
Series	RX651
Package	Tray
Product Status	Active
Core Processor	RXv2
Core Size	32-Bit Single-Core
Speed	120MHz
Connectivity	CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, QSPI, SCI, SPI, UART/USART, USB
Peripherals	DMA, LVD, POR, PWM, WDT
Number of I/O	111
Program Memory Size	512KB (512K x 8)
Program Memory Type	FLASH
EEPROM Size	-
RAM Size	256K x 8
Voltage - Supply (Vcc/Vdd)	2.7V ~ 3.6V
Data Converters	A/D 29x12b; D/A 2x12b
Oscillator Type	Internal
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	144-LQFP
Supplier Device Package	144-LFQFP (20x20)
Base Product Number	R5F56514
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	3A991A2
HTSUS	8542.31.0001
Win Source Part Number	1356541-R5F56514BDFB#30
Ultra Librarian 3D Model	Ultra Librarian R5F56514BDFB#30 CAD Model

Alternative Products

Description

The 1356541-R5F56514BDFB#30 is an embedded microcontroller from Renesas Electronics America Inc.

Series: RX651
Operating Temperature: -40°C ~ 85°C
Core Processor: RXv2
Core Size: 32-Bit
Speed: 120MHz
Connectivity: CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, QSPI, SCI, SPI, UART/USART
Peripherals: DMA, LVD, POR, WDT
Number of I/O: 111
Program Memory Size: 512KB (512K x 8)
Program Memory Type: Flash
RAM Size: 64K x 8
Voltage - Supply: 2.7V ~ 3.6V
Data Converters: A/D 29x12b, D/A 2x12b
Oscillator Type: Internal
Package / Case: 144-LQFP
Mounting Type: Surface Mount
