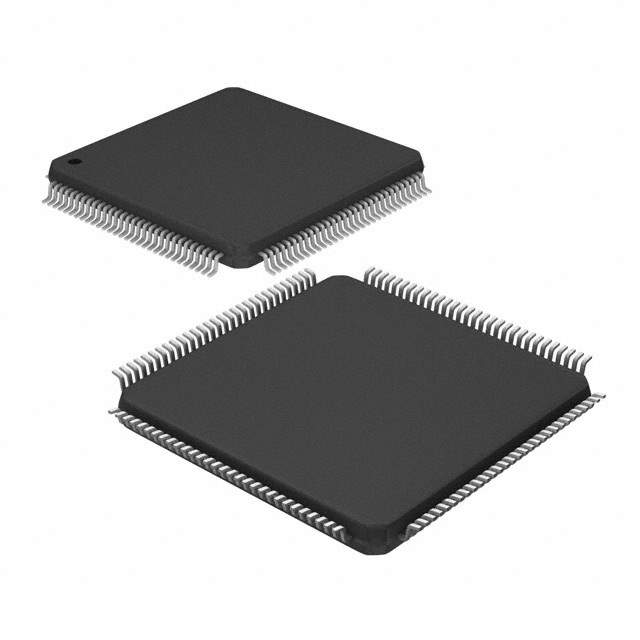

R5F563TEBDFA#V0 Real Image
Same model may have multiple batches, images only for reference.

R5F563TEBDFA#V0

Part No R5F563TEBDFA#V0
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 512KB FLASH 120LQFP / RX series Microcontroller IC 32-Bit Single-Core 100MHz 512KB (512K x 8) FLASH 120-LQFP (16x16)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series RX600
Package Tray
Product Status Not For New Designs
Core Processor RX
Core Size 32-Bit Single-Core
Speed 100MHz
Connectivity CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 72
Program Memory Size 512KB (512K x 8)
Program Memory Type FLASH
EEPROM Size 32K x 8
RAM Size 48K x 8
Supply Voltage - Operating 2.7V ~ 3.6V
Data Converters A/D 12x10b, 8x12b; D/A 2x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 120-LQFP
Supplier Device Package 120-LQFP (16x16)
Base Product Number R5F563
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 90
Win Source Part Number 966316-R5F563TEBDFA#V0
Ultra Librarian 3D Model Ultra Librarian R5F563TEBDFA#V0 CAD Model

Description

The Renesas Electronics America R5F563TEBDFA#V0 is an embedded microcontroller. Renesas Electronics America is the manufacturer.

  • Core Processor: RX
  • Speed: 100MHz
  • Package: Tray
  • Standard Package: 90
  • Supply Voltage: 2.7V to 3.6V
  • Operating Temperature: -40°C to 85°C
  • I/Os: 72
  • Program Memory Size: 512KB
  • Category: Integrated Circuits
  • ECCN: 3A991A2
  • MSL Level: 3 (168 Hours)
  • REACH Status: Unaffected
